Van Allen radiation belt

Van Allen radiation belt
source
Name	Van Allen radiation belt

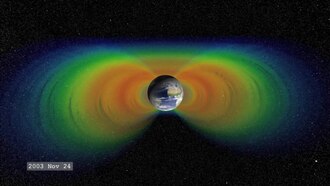

Caption	Artist's depiction of the Van Allen Probes spacecraft studying the belts.
Discovered	1958
Discoverer	James Van Allen
Instrument	Explorer 1, Explorer 3

Van Allen radiation belt. The Van Allen radiation belts are two concentric, torus-shaped regions of energetic charged particles, primarily electrons and protons, that are held in place by Earth's magnetic field. They are a fundamental component of the planet's magnetosphere, posing a significant hazard to satellites and human spaceflight while also serving as a natural laboratory for studying plasma physics. The belts' existence was confirmed in 1958 by data from the first successful United States satellite, Explorer 1, leading to a new understanding of the space environment.

Discovery and history

The theoretical possibility of trapped radiation around Earth was suggested by earlier scientists like Kristian Birkeland and Carl Størmer. The definitive discovery, however, is credited to American physicist James Van Allen and his team at the University of Iowa. Data from the Geiger counter on board Explorer 1, launched as part of the International Geophysical Year, showed unexpectedly high radiation levels. Follow-up measurements from Explorer 3 and Pioneer 3 confirmed the presence of the belts, which were subsequently named for Van Allen. Early mapping was conducted by missions like Explorer 4 and the Soviet Union's Sputnik 2. Later, the Interplanetary Monitoring Platform series and the Advanced Composition Explorer provided more detailed observations. In 2012, NASA launched the twin Van Allen Probes mission, which revolutionized understanding by discovering a transient third belt and detailing the belts' dynamic behavior.

Structure and composition

The belts consist of two primary zones. The inner belt, centered roughly 3,000 km above Earth's surface, is relatively stable and contains high-energy protons and electrons. The outer belt, extending from about 13,000 to 60,000 km, is highly variable and consists mostly of high-energy electrons. Between them lies a region of lower radiation density known as the slot region. The particles originate from multiple sources, including the solar wind and cosmic rays that interact with the upper atmosphere. The composition includes ions from the Sun and from Earth's own ionosphere, such as oxygen nuclei. The outer boundary of the belts is shaped by the pressure of the solar wind against the magnetopause.

Formation and dynamics

The belts are formed and sustained by Earth's intrinsic magnetic dipole field, which traps charged particles via the Lorentz force. Particles spiral along magnetic field lines, bounce between mirror points near the North Pole and South Pole, and drift longitudinally around the planet. Their dynamics are driven by complex wave-particle interactions, including those from whistler-mode waves and chorus waves. Major disturbances are caused by events on the Sun, such as coronal mass ejections and solar flares, which can dramatically compress the magnetosphere and inject new particles. The South Atlantic Anomaly, where the inner belt dips closest to Earth, is a result of the offset between Earth's geographic and magnetic axes.

Effects on spacecraft and astronauts

The high radiation levels present a severe engineering challenge. Energetic particles can cause single-event upsets in satellite electronics, degrade solar panels, and penetrate shielding. The Hubble Space Telescope, for instance, must power down its instruments when passing through the South Atlantic Anomaly. For human spaceflight, traversing the belts poses a significant radiation exposure risk, a critical consideration for missions during the Apollo program to the Moon. The International Space Station orbits below the bulk of the inner belt to minimize crew dose. Mitigation strategies include selective shielding, radiation-hardened components, and careful trajectory planning for missions like the Mars Science Laboratory.

Scientific importance and research

Studying the belts is crucial for understanding fundamental space plasma processes relevant to astrophysics and planetary science. They serve as a nearby analog for radiation environments around other magnetized bodies like Jupiter and Saturn. Research has been advanced by missions such as the Cluster mission, the THEMIS satellites, and the Japanese Arase spacecraft. Key discoveries include the role of ultra-low frequency waves in particle acceleration and the existence of an impenetrable barrier to ultra-relativistic electrons. Ongoing work focuses on improving space weather forecasting models to protect critical infrastructure like the Global Positioning System and communication satellites operated by organizations like the European Space Agency.
