Sydney Metro

Sydney Metro
source
Name	Sydney Metro
Locale	Greater Sydney, New South Wales
Transit type	Rapid transit
Began operation	26 May 2019
Lines	1 operational, 1 under construction
Stations	13 operational
Track gauge	sg
El	1,500 V DC overhead
Owner	Transport for NSW
Operator	Metro Trains Sydney

Sydney Metro. It is a fully automated rapid transit system serving the Greater Sydney metropolitan area in New South Wales, Australia. As the country's first fully automated metro railway, it represents a significant expansion of Sydney's public transport network, operating independently from the existing Sydney Trains commuter rail system. The network is designed to provide high-frequency, turn-up-and-go services to key urban centres and growth areas.

History

The genesis of the project can be traced to planning studies in the early 2000s, which evolved into the North West Rail Link project. In 2014, the Government of New South Wales announced the transformation of this project into a standalone, automated metro system. Construction was led by the Sydney Metro Authority and involved major engineering consortia, with significant tunnelling work beneath the Sydney central business district. The first segment, known as Metro North West Line, opened to the public on 26 May 2019, linking Tallawong and Chatswood. The critical Sydney Harbour crossing, the first railway tunnel under the harbour since the construction of the Sydney Harbour Bridge, was completed as part of the City & Southwest extension, which opened in stages through 2024.

Network

The operational network consists of a single line running from Tallawong in the north-west to Sydenham in the inner-south, with a major interchange at Chatswood. Key stations in the Sydney central business district include Martin Place, Barangaroo, and Central. The line incorporates converted sections of the former Epping to Chatswood railway line and new deep-level tunnels through the city core. It interfaces with the wider transport network at hubs like Central and Chatswood, providing connections to Sydney Trains services and Sydney Ferries.

Operations

Services are operated under contract by Metro Trains Sydney, a joint venture between MTR Corporation, John Holland Group, and UGL Limited. The system operates with a high degree of automation, utilising Communications-based train control technology for precision and safety. Trains run approximately every four minutes during peak periods, offering a turn-up-and-go service without a published timetable. All stations feature platform screen doors for enhanced safety, aligning with the automated operation. The network is integrated into the regional ticketing system, Opal card, managed by Transport for NSW.

Rolling stock

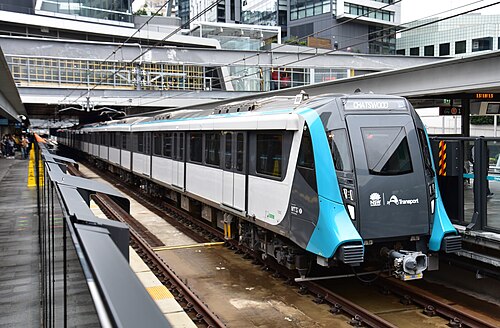

The system uses a fleet of 22 six-car Alstom Metropolis trains, manufactured by Alstom in Sricity, India. These fully automated, single-deck trains are designed for high-frequency operation and are equipped with modern passenger amenities including air conditioning, digital information displays, and dedicated spaces for luggage and bicycles. The trains are maintained at the purpose-built Tallawong Metro Facility. The design and procurement of the rolling stock was managed by the Sydney Metro Authority.

Future expansion

A major western extension, the Sydney Metro West, is under construction and will create a second standalone line between the Sydney central business district and Westmead, with intermediate stations including Parramatta and Sydney Olympic Park. Planning is also advanced for the Sydney Metro Western Sydney Airport line, which will service the new Western Sydney International Airport and the surrounding Bradfield city centre. Further proposals, subject to government approval, include potential extensions in the South West Sydney region and additional lines to better serve the growing populations of the Greater Sydney basin.
