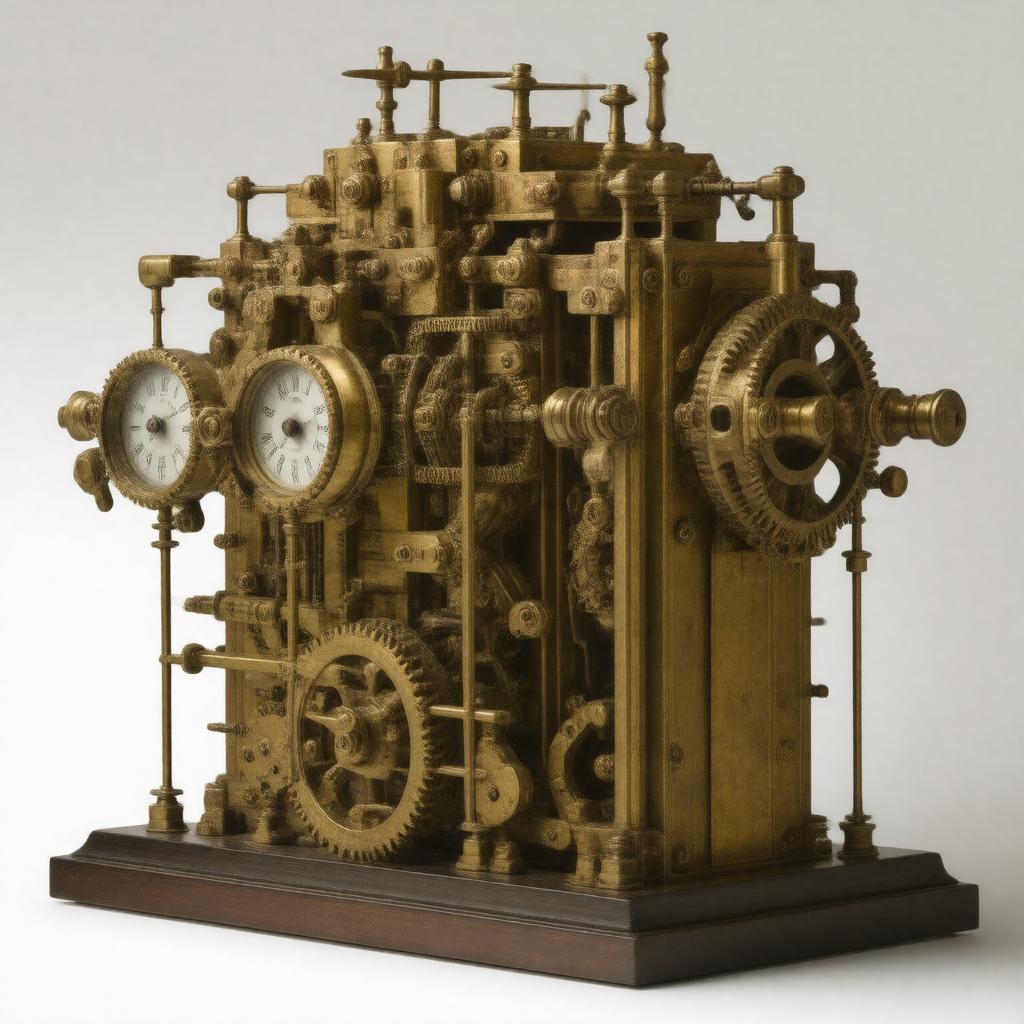

Stepped Reckoner

Stepped Reckoner. The Stepped Reckoner was a pioneering mechanical calculator invented by the German polymath Gottfried Wilhelm Leibniz around 1672 and completed in 1694. It was the first calculator capable of performing all four basic arithmetic operations—addition, subtraction, multiplication, and division—mechanically. This sophisticated device represented a significant advancement over earlier calculators like Blaise Pascal's Pascaline and laid crucial conceptual groundwork for the development of modern computing.

History and development

The development of the Stepped Reckoner was driven by Gottfried Wilhelm Leibniz's lifelong interest in mathematics and his desire to automate complex calculations, which he saw as essential for progress in fields like astronomy and navigation. Leibniz began designing the machine after learning of the limitations of the Pascaline, which could only perform addition and subtraction. He presented his initial concept, featuring his innovative stepped drum mechanism, to the Royal Society in London and the Académie des Sciences in Paris in the early 1670s. The actual construction was a protracted and difficult process, overseen by a French craftsman named Olivier in Paris, and was not fully realized until 1694, after more than two decades of effort and refinement.

Design and mechanism

The core innovation of the Stepped Reckoner was its stepped drum or Leibniz wheel, a cylinder with nine teeth of incrementally different lengths arranged along its length. This drum engaged with a counting wheel, allowing for the direct mechanical multiplication of a digit by turning a single crank. The machine featured a set of these drums, one for each digit of the multiplicand, aligned on a common shaft. Input was set via dials, and the result was displayed in a series of output windows. Unlike the Pascaline, it incorporated a moving carriage to handle the positional shifts required for multiplication and division, a principle later used in the Arithmometer. The entire apparatus was complex, built from materials like brass and steel, and required precise craftsmanship to function reliably.

Mathematical operations

The Stepped Reckoner was designed to perform direct multiplication and division, a capability that distinguished it from its predecessors. For multiplication, the operator would set the multiplicand on the input dials and then turn the crank a number of times corresponding to each digit of the multiplier, manually shifting the carriage between steps as in the traditional algorithm for long multiplication. Division was performed through a tedious process of repeated subtraction, essentially the reverse of multiplication. While it could also execute addition and subtraction more straightforwardly, the machine's primary contribution was mechanizing the more labor-intensive operations, aiming to reduce errors in fields like geodesy and financial accounting.

Influence and legacy

Although the Stepped Reckoner itself was not commercially successful due to its mechanical complexity and cost, its design principles were profoundly influential. The stepped drum mechanism became a standard in calculating machines for nearly two centuries, used in successful later devices like Charles Xavier Thomas's Arithmometer. Leibniz's work on the machine is also deeply connected to his development of binary arithmetic and his philosophical concepts of a Characteristica Universalis, ideas that would later resonate with pioneers of computer science like Charles Babbage and Alan Turing. Thus, the Stepped Reckoner stands as a critical conceptual bridge between simple calculating aids and the eventual advent of programmable computers.

Surviving examples and replicas

No original Stepped Reckoner from Leibniz's era is known to have survived completely intact. The two machines built under his supervision were lost, with one reportedly destroyed in a fire. However, several working replicas and reconstructions exist based on Leibniz's detailed drawings and descriptions. Notable replicas are held by the Deutsches Museum in Munich and the Gottfried Wilhelm Leibniz Bibliothek in Hanover. These replicas demonstrate the machine's operation for historians and the public, providing tangible insight into one of the most important early milestones in the history of computing technology.
