Stanford Dish

Stanford Dish. The Stanford Dish is a prominent landmark radio telescope located on the foothills of the Santa Cruz Mountains in Stanford, California. Constructed in the early 1960s by the Stanford Research Institute, it was originally built for research in radio astronomy and satellite communication. The structure, along with the extensive trail network surrounding it, has become an iconic part of the San Francisco Peninsula landscape and a popular destination for both scientific work and public recreation.

History and construction

The project was initiated by scientists at the Stanford Research Institute, notably including researchers like John D. Kraus, to advance studies in radio astronomy. Funded in part by the United States Air Force and the National Science Foundation, its construction was completed in 1961. The primary initial purpose was to study the chemical composition of the Earth's atmosphere and to conduct pioneering work in satellite communication, including tracking early satellites like Echo 1. The site was strategically chosen on university-owned land in the Jasper Ridge Biological Preserve area for its relative radio quiet and elevated terrain. The dish's design and construction occurred during the heightened technological competition of the Space Race, reflecting the era's investment in aerospace and defense-related research.

Description and specifications

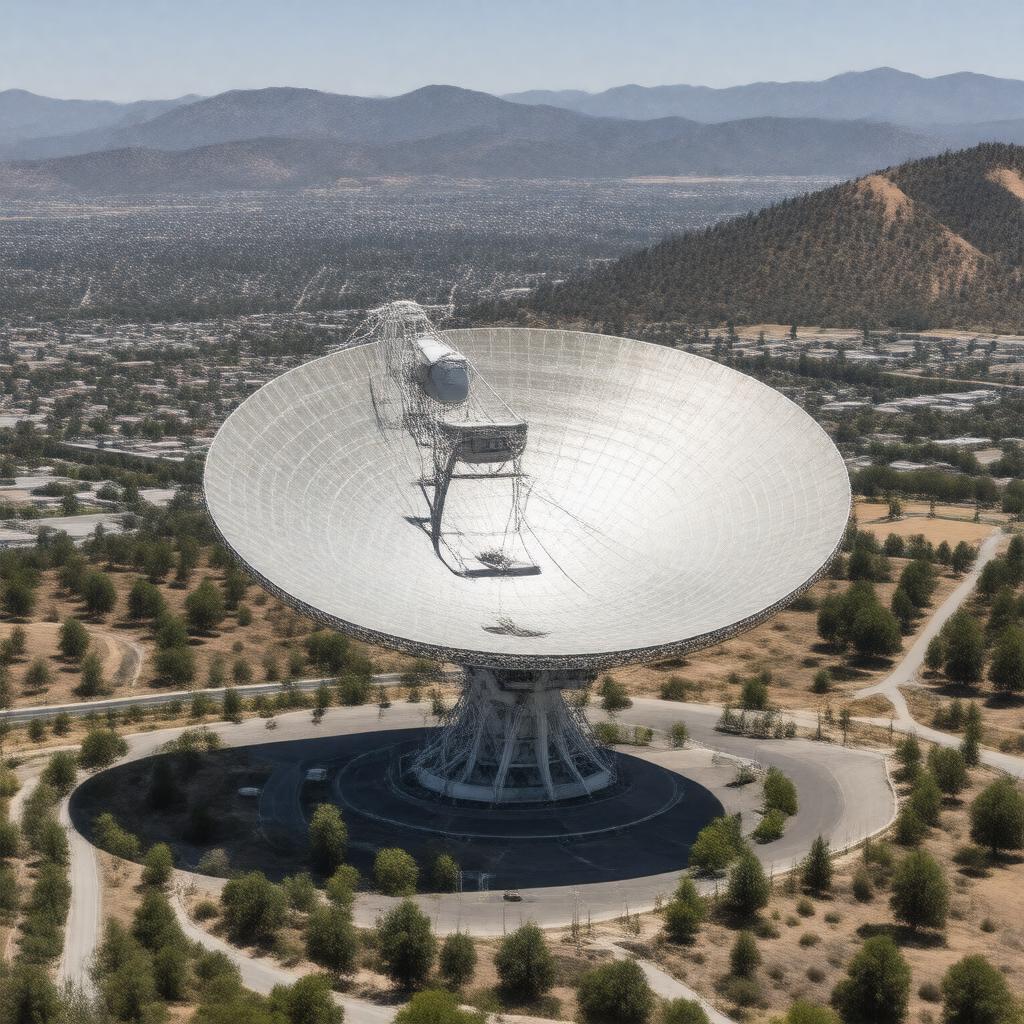

The structure is a fully steerable parabolic reflector, or dish, constructed from a steel frame supporting a wire mesh surface. It has a diameter of 150 feet (46 meters) and a focal length of 45 feet (14 meters), with the entire assembly mounted on an altazimuth mount for precise pointing. The supporting pedestal and control facilities are housed in a concrete base structure. The reflector's surface is made of perforated aluminum panels, which are effective for the microwave frequencies used in its research. The entire instrument weighs approximately 125 tons and is capable of rotating 360 degrees in azimuth and moving from horizon to horizon in elevation, allowing it to track objects across much of the sky. Its design shares similarities with contemporary instruments like the Lovell Telescope at Jodrell Bank Observatory.

Scientific and research use

Its early work was pivotal in the field of radio astronomy, contributing to studies of solar radio emission and the interstellar medium. A significant achievement was its role in the discovery of the Van Allen radiation belts through collaborative experiments. Throughout the 1960s and 1970s, it was heavily used for satellite communication research, supporting projects for NASA and the Department of Defense, including work on the Global Positioning System. It also conducted bistatic radar experiments, studying planetary surfaces by analyzing reflected signals from the Arecibo Observatory. In later decades, its research focus shifted, but it continued to be used for educational purposes by Stanford University departments like Electrical Engineering and for testing new communication technologies.

Public access and recreation

The area surrounding the structure is managed by Stanford University and features a well-maintained 3.7-mile (6.0 km) loop trail known as the Stanford Dish Loop Trail. Open from dawn to dusk, the trail attracts thousands of hikers, runners, and cyclists daily, offering panoramic views of the San Francisco Bay, the Stanford University campus, and on clear days, the San Francisco skyline. Access is controlled via a gated entrance, and visitors are required to stay on the designated path to protect the sensitive research equipment and the adjacent Jasper Ridge Biological Preserve. The trail's popularity has made it a fixture in the fitness culture of communities like Palo Alto, Menlo Park, and Los Altos Hills.

Cultural significance and landmarks

It has become an enduring symbol of both technological innovation and the natural beauty of the San Francisco Peninsula, frequently featured in local media, university publications, and promotional materials. The distinctive silhouette against the foothills has made it a recognizable backdrop in films, television shows, and countless photographs. For the academic community at Stanford University, it represents a historic link to the institution's major contributions to 20th-century science and engineering. The trail and dish are often included in guides to notable Bay Area attractions, alongside places like Hoover Tower and the Computer History Museum. It stands as a physical testament to the intersection of academic research, Cold War technology, and contemporary public space.
