SWTPC 6800

SWTPC 6800
source

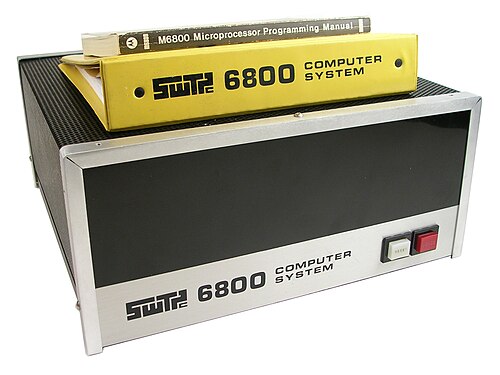

Name	SWTPC 6800
Manufacturer	Southwest Technical Products Corporation
Type	Microcomputer
Release date	1975
Cpu	Motorola 6800
Memory	1 KB (expandable)
Storage	Kansas City standard cassette tape
Os	Tiny BASIC, SWTBUG
Display	Video terminal
Predecessor	MITS Altair 8800
Successor	SWTPC 6809

SWTPC 6800. The SWTPC 6800 was an influential early microcomputer kit introduced in 1975 by Southwest Technical Products Corporation. Based on the powerful Motorola 6800 microprocessor, it provided a more sophisticated and user-friendly alternative to contemporaries like the MITS Altair 8800. Its well-designed motherboard and comprehensive support for peripherals helped establish it as a favorite among serious hobbyists and laid groundwork for future systems.

History and development

The system emerged from the burgeoning homebrew computer club scene, where Daniel Meyer, founder of Southwest Technical Products Corporation, recognized a market for a robust, expandable computer kit. Development commenced shortly after the release of the Motorola 6800 in 1974, aiming to capitalize on its advanced architecture compared to the Intel 8080. The first units were advertised in publications like Byte (magazine) and Popular Electronics in mid-1975. Its launch coincided with the formation of key user groups and the rise of S-100 bus systems, though the SWTPC 6800 utilized its own proprietary SS-50 Bus. The design philosophy emphasized reliability and clean digital logic, which distinguished it from many kits of the era and attracted a dedicated following.

Hardware specifications

At its core was the Motorola 6800 central processing unit running at 1 MHz. The base system included 1 Kilobyte of static random-access memory, expandable via plug-in cards to 64 KB. Its SS-50 Bus provided eight slots for expansion, supporting a wide array of official and third-party cards for memory, input/output, and control. Standard input/output was handled through a serial port designed for connection to a Teletype Model 33 or a video terminal. Mass storage initially relied on cassette tape using the Kansas City standard, with later support for floppy disk drives via Percom Data Company and Smoke Signal Broadcasting controllers. The motherboard also featured an integrated hexadecimal keypad and seven-segment display for direct machine interaction.

Software and operating systems

The primary firmware was SWTBUG, a machine code monitor stored in read-only memory that facilitated program loading and debugging. For higher-level programming, the system famously ran Tiny BASIC, a stripped-down version of the BASIC language ported by members of the Homebrew Computer Club, including Li-Chen Wang. This implementation was published in Palo Alto Tiny Basic and became a seminal piece of open-source software. As the platform matured, users could run the FLEX disk operating system, which supported a more sophisticated software library. Development tools were sparse initially, but the community produced assemblers, text editors, and games, often distributed through newsletters like The SCCS Interface.

Impact and legacy

The SWTPC 6800 is regarded as a pivotal machine that demonstrated the commercial viability of Motorola-based microcomputing. It fostered a strong user community, exemplified by organizations like the Motorola 6800 Microprocessor Users Group, and influenced the design of subsequent business systems. The clean computer architecture of the SS-50 Bus became a standard for the company's later machines, including the influential SWTPC 6809. While not as mass-market as the Apple II or Commodore PET, its emphasis on engineering quality and expandability made it a respected platform in educational and research settings. It also provided an early platform for developers who would later contribute to the Unix and workstation markets.

Model variants

The original kit, often called the 6800 Computer System, was followed by several notable variants. The SWTPC 6800 System 1 integrated the central processing unit and read-only memory onto a single board computer. The SWTPC 6800 System 2 and SWTPC 6800 System 3 offered enhanced packaging and expanded capabilities, sometimes pre-assembled. A significant evolution was the Motorola 6809-based SWTPC 6809, which maintained backward compatibility with the SS-50 Bus. Specialized configurations existed for applications in process control and as development systems for other microprocessor families, solidifying the platform's role in industrial computing.
