STL (file format). The STL file format is a de facto standard for representing three-dimensional surface geometry, primarily used for rapid prototyping and 3D printing. It approximates the surfaces of a CAD model using a mesh of interconnected triangles, a process known as tessellation. This simple, widely supported format serves as a crucial bridge between computer-aided design software and additive manufacturing hardware.

Overview

The fundamental principle of the STL format is the representation of a 3D model's outer boundaries through a collection of faceted surfaces. Each facet is defined by a unit normal vector and three vertices, forming a triangle. This polygon mesh structure creates a lightweight, albeit approximate, digital model suitable for slicing software to process into printable layers. The format exists in both ASCII and more compact binary file versions, with the latter being predominant in modern use due to smaller file size. Its simplicity enabled early adoption across the stereolithography industry and later by the broader maker movement.

History

The STL format was created in 1987 by 3D Systems, the company founded by Chuck Hull, the inventor of stereolithography. It was developed specifically for their early SLA-1 3D printers, with the name derived from the term "stereolithography." As the first commercial rapid prototyping technology gained traction, the format was adopted by other manufacturers like Stratasys for their fused deposition modeling systems. Its role was cemented as the primary data transfer format for the industry, a status it largely maintained through the RepRap Project and the subsequent explosion of consumer desktop 3D printing. Despite its age, it remains one of the most universally recognized formats in additive manufacturing.

File format

An STL file describes a raw, unstructured triangulated surface by the unit normals and vertices of the triangles using a three-dimensional Cartesian coordinate system. In the ASCII version, each facet is listed sequentially with its normal and vertices, typically beginning with the keyword `solid` and ending with `endsolid`. The binary file version starts with an 80-character header, followed by a 4-byte integer declaring the total number of triangles, then proceeds with data blocks for each facet. Each data block consists of twelve 32-bit floating-point numbers (three for the normal and nine for the three vertices) and a two-byte attribute byte count, which is usually zero. This structure lacks any scale information, color data, or material properties, focusing solely on geometry.

Applications

The primary application of the STL format is in 3D printing, where it acts as the standard input for slicing software such as Ultimaker Cura, PrusaSlicer, and Simplify3D. These programs convert the triangle mesh into G-code instructions for printers from companies like Formlabs, MakerBot, and Creality. Beyond fused filament fabrication, it is used in stereolithography, selective laser sintering, and digital light processing systems. The format is also prevalent in reverse engineering workflows, computer-aided manufacturing for CNC machining preparation, and within medical imaging for converting CT scan or MRI data into printable anatomical models for surgical planning.

Limitations and alternatives

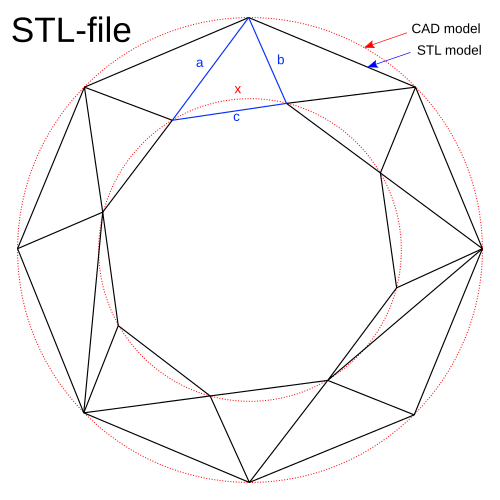

Significant limitations of the STL format include its approximation of curved surfaces with flat facets, which can create large file sizes and visible "stair-stepping" on models, a problem known as staircase effect. It contains no inherent information about texture mapping, color, materials, or hierarchical assembly structure, making it unsuitable for detailed product lifecycle management. Modern alternatives address these shortcomings: the AMF format supports curved triangles, colors, and materials; 3MF, developed by the 3MF Consortium involving Microsoft and Autodesk, is a comprehensive XML-based format; and OBJ is widely used in computer graphics for retaining texture coordinates. Native CAD formats like those from SolidWorks or STEP also provide richer, more precise data for professional engineering workflows.
