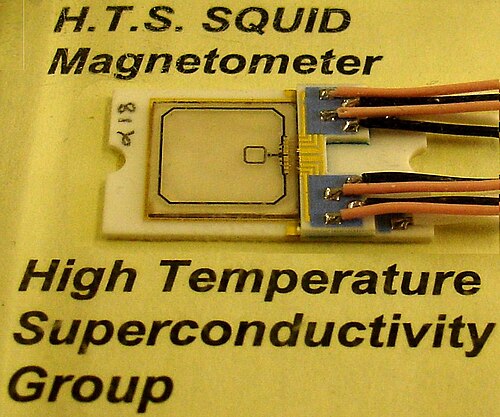

Caption	A modern SQUID sensor in a magnetically shielded enclosure.
Classification	Superconducting quantum interference device
Inventor	James Edward Zimmerman, Robert Arnold Buhrman, John Clarke (physicist)
Related	Josephson effect, Superconducting quantum computing, Magnetometer

SQUID. A superconducting quantum interference device (SQUID) is an extremely sensitive magnetometer used to measure extremely subtle magnetic fields, based on superconducting loops containing Josephson junctions. It is the most sensitive detector of magnetic flux, capable of measuring fields a billion times weaker than the Earth's magnetic field. These devices are fundamental tools in fields ranging from geophysics to neuromagnetism and are a cornerstone of superconducting electronics.

Principles of operation

The operation of a SQUID relies fundamentally on the Josephson effect, where a supercurrent flows between two superconductors separated by a thin insulating barrier without an applied voltage. A SQUID typically consists of a superconducting loop interrupted by one or two such junctions. The critical current of the loop is modulated by the external magnetic flux threading it, with a period of one flux quantum. This periodic dependence allows the device to act as a highly linear flux-to-voltage transducer. The extreme sensitivity arises from the quantum mechanical nature of superconductivity, where the wave function phase is coherent around the loop. This makes the SQUID sensitive enough to detect the magnetic fields generated by neuronal activity in the human brain or minute anomalies in geological surveys.

Types of SQUIDs

The two primary classifications are the direct current (DC) SQUID and the radio frequency (RF) SQUID. The DC SQUID incorporates two Josephson junctions in the superconducting loop and is typically operated with a constant bias current, producing a voltage output that oscillates with the applied flux. The RF SQUID utilizes a single junction and is inductively coupled to a resonant tank circuit driven at radio frequencies; the reflected RF signal is modulated by the flux in the loop. While DC SQUIDs generally offer higher sensitivity, RF SQUIDs are often simpler to fabricate and operate. Specialized variants have been developed for specific applications, including high-temperature SQUIDs made from Yttrium barium copper oxide and nanoSQUIDs for studying magnetic properties of individual nanoparticles or molecular magnets.

Fabrication and materials

Traditional low-temperature SQUIDs are fabricated from niobium or lead alloys using thin-film deposition techniques such as sputter deposition and photolithography. The Josephson junctions are often formed as tunnel junctions with an aluminium oxide barrier. The discovery of high-temperature superconductivity in materials like Yttrium barium copper oxide enabled SQUIDs that operate at liquid nitrogen temperatures, significantly reducing cooling complexity. Fabrication of these devices is more challenging due to the complex crystal structure and often involves techniques like pulsed laser deposition. Integration with semiconductor readout electronics and the development of multilayer structures for gradiometer configurations are key areas of ongoing research at institutions like the National Institute of Standards and Technology.

Applications

SQUIDs have a vast range of applications due to their unparalleled sensitivity. In biomagnetism, they are the core sensor in magnetoencephalography systems to non-invasively map brain function and in magnetocardiography to measure the heart's magnetic field. In geophysics, they are used in transient electromagnetics and magnetotellurics for mineral exploration and oil reservoir mapping. Fundamental physics experiments utilize SQUIDs to search for axions or measure the Casimir effect. They are also crucial in superconducting quantum computing as readout devices for qubit states and in low-temperature physics for measuring tiny magnetic moments in materials at facilities like the Max Planck Institute.

History and development

The theoretical foundation was laid with Brian David Josephson's prediction of the Josephson effect in 1962, for which he later shared the Nobel Prize in Physics. The first working SQUID was demonstrated in 1964 by a team at Ford Motor Company that included James Edward Zimmerman and Robert Arnold Buhrman. Significant early development was driven by John Clarke (physicist) at the University of California, Berkeley, who pioneered many biomagnetic applications. The subsequent invention of the DC SQUID with two junctions by James Mercereau and colleagues at the Massachusetts Institute of Technology improved performance dramatically. The 1986 discovery of high-temperature superconductivity by Johannes Georg Bednorz and Karl Alexander Müller revolutionized the field, leading to more practical systems. Ongoing research focuses on integrating SQUIDs with quantum circuits and advancing nanoelectromechanical systems. Category:Superconductivity Category:Sensors Category:Measuring instruments
