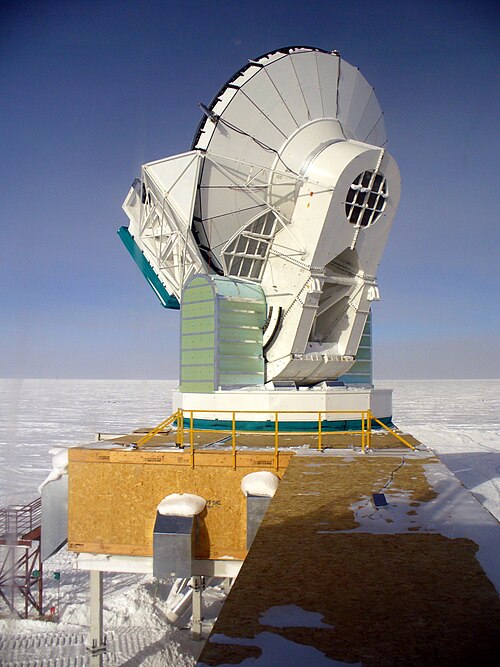

SPTpol

SPTpol
Amble · CC BY-SA 3.0 · source
Name	SPTpol
Organization	South Pole Telescope collaboration
Location	Amundsen–Scott South Pole Station
Wavelength	1.4, 2.0 mm
Built	2011–2012
First light	2012

SPTpol. It was a specialized polarization-sensitive camera installed on the South Pole Telescope at the Amundsen–Scott South Pole Station in Antarctica. Operating from 2012 to 2016, its primary mission was to make ultra-sensitive measurements of the polarization of the cosmic microwave background radiation. These observations were designed to probe the physics of the early universe, including testing models of cosmic inflation and mapping the large-scale structure of the cosmos through the Sunyaev–Zel'dovich effect.

Overview

SPTpol represented a significant upgrade to the observational capabilities of the South Pole Telescope, a 10-meter diameter telescope specifically designed for CMB surveys. The instrument was developed by a large collaboration led by institutions including the University of Chicago, the University of California, Berkeley, and the Argonne National Laboratory. Its deployment capitalized on the exceptional atmospheric conditions at the South Pole, which are characterized by very low humidity and stable, cold air, making it one of the best sites on Earth for observations at millimeter wavelengths. The project built upon the legacy of earlier CMB experiments like WMAP and was a contemporary of other ground-based efforts such as the Atacama Cosmology Telescope.

Instrumentation and Design

The core innovation of SPTpol was its focal plane, which contained over 1,600 superconducting transition-edge sensor bolometers, a technology also advanced by projects like the Atacama Cosmology Telescope Polarimeter. These detectors were sensitive to two frequency bands, centered at 95 and 150 GHz, to help separate the CMB signal from foreground emission from the Milky Way. The bolometers were arranged into two distinct arrays: one using feedhorn-coupled pixels for greater control over systematic errors, and another using lenslet-coupled pixels for a denser packing of detectors. This sophisticated cryogenic system operated at a temperature near 0.25 Kelvin, achieved using a combination of a pulse tube cooler and a He-3/He-4 dilution refrigerator.

Scientific Goals and Observations

The principal scientific objectives of SPTpol were twofold. First, it aimed to measure the faint B-mode polarization patterns in the CMB, a potential signature of gravitational waves generated during the epoch of cosmic inflation, a period of rapid expansion in the first moments after the Big Bang. Second, it conducted a wide-area survey to detect clusters of galaxies via the Sunyaev–Zel'dovich effect, where CMB photons gain energy after scattering off hot electrons in cluster gas. This survey covered approximately 2,500 square degrees of the southern sky, overlapping with regions observed by optical surveys like the Dark Energy Survey to enable multi-wavelength studies of cosmology and astrophysics.

Key Results and Discoveries

SPTpol produced a series of high-impact cosmological results. It placed some of the most stringent constraints of its era on the tensor-to-scalar ratio, a key parameter of inflationary models, by measuring both the gravitational lensing of the CMB and searching for primordial B-modes. The instrument's cluster survey discovered hundreds of previously unknown galaxy clusters, significantly expanding catalogs such as those from the Planck (spacecraft) mission and providing a powerful sample for studying dark energy and cluster astrophysics. Its high-fidelity maps of CMB polarization also delivered precise measurements of the E-mode polarization power spectrum and advanced the understanding of secondary anisotropies.

Collaboration and Legacy

The SPTpol collaboration involved scientists from over a dozen universities and national laboratories across the United States, as well as international partners. The data and analysis techniques developed for SPTpol directly informed the design and science goals of its successor instrument, SPT-3G, which features an order of magnitude more detectors. The legacy of SPTpol's surveys continues to be mined for astrophysical studies, contributing to our knowledge of galaxy evolution, the intergalactic medium, and the interplay between dark matter and baryonic physics. Its findings remain integral to the global effort in precision cosmology pursued by subsequent observatories like the Simons Observatory and the planned CMB-S4 project.
