S-IVB

S-IVB
source
Name	S-IVB

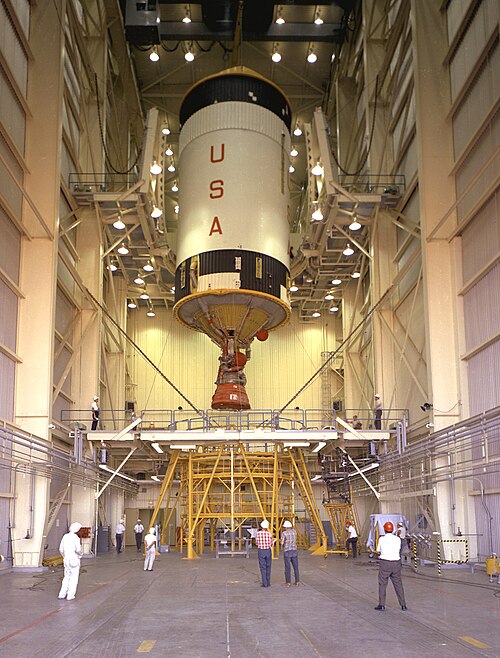

Caption	An S-IVB stage during preparations for the Apollo 7 mission.
Manufacturer	Douglas Aircraft Company
Country	United States
Purpose	Upper stage
Associated rocket	Saturn IB, Saturn V
Height	17.8 m
Diameter	6.6 m
Mass	119,900 kg (dry), 252,750 kg (fuelled)
Engine	1 J-2
Thrust	1,033.1 kN (vacuum)
Fuel	Liquid hydrogen
Oxidizer	Liquid oxygen
Burns	2 (Saturn V configuration)
Status	Retired

S-IVB. The S-IVB was the powerful third stage of the Saturn V launch vehicle and the second stage of the smaller Saturn IB, both critical to the success of the Apollo program. Manufactured by the Douglas Aircraft Company, it was the first cryogenic stage to be restarted in space, a capability essential for translunar injection. Its development and operational history are central to the story of American lunar exploration.

Development and design

The stage evolved from earlier concepts within the United States Air Force and was later adapted by NASA under the direction of the Marshall Space Flight Center. Its design was led by a team of engineers at Douglas Aircraft Company's Huntington Beach facility, building upon experience with the smaller S-IV stage used on the Saturn I. The primary innovation was the incorporation of a single, restartable J-2 rocket engine, burning a combination of Liquid hydrogen and Liquid oxygen. To manage propellants in the weightless environment of space, the stage used small ullage motors and a complex system of Helium pressurization spheres. The structure employed a Common bulkhead to separate its fuel tanks, saving weight and volume, a technique pioneered on the Centaur stage.

Operational history

The S-IVB first flew on the AS-201 suborbital test flight in 1966 as part of the Saturn IB. Its most historic missions were as part of the Saturn V, where it performed two critical burns: first to achieve Earth orbit, and then, after a coast phase, to propel the Apollo spacecraft toward the Moon. This restart capability was first demonstrated in space during the Apollo 4 mission. On the Apollo 13 mission, the stage's J-2 engine performed a crucial extended-duration burn after the Lovell-Haise-Swigert crew faced their in-flight emergency. After completing its primary mission, the spent stage was often intentionally impacted into the Lunar surface for seismic experiments or directed into Heliocentric orbit.

Technical specifications

The stage stood approximately tall and had a diameter of . Its dry mass was about , increasing to over when fully loaded with of Liquid hydrogen and of Liquid oxygen. The single J-2 engine produced of thrust in a vacuum. For attitude control after main engine cutoff, it relied on an Auxiliary Propulsion System (APS) mounted on the aft skirt. The stage's Instrument unit, located atop the Liquid hydrogen tank, contained the guidance, navigation, and control systems for the entire Saturn V vehicle during its phase of flight.

Variants and applications

The primary variants were the S-IVB-200 series for the Saturn IB and the more powerful S-IVB-500 series for the Saturn V. The -500 series featured upgraded propellant tanks, improved ullage motors, and enhanced thermal protection. After the Apollo program, modified S-IVB stages were used as orbital workshops. The most famous example was Skylab, America's first space station, which was constructed from a heavily modified S-IVB-500 stage outfitted by McDonnell Douglas. Proposals for other applications, such as the Interim Upper Stage and elements of the Space Transportation System, were studied but not developed.

Legacy and significance

The S-IVB remains a landmark achievement in aerospace history, demonstrating the critical technology of in-space cryogenic engine restart that made lunar missions possible. Its success directly enabled the triumphs of the Apollo program, including the landing of Neil Armstrong and Buzz Aldrin during Apollo 11. The stage's adaptation into Skylab provided invaluable long-duration experience for NASA astronauts. Its design principles and operational lessons informed the development of later upper stages, including the Space Shuttle External Tank and the Exploration Upper Stage planned for the Space Launch System.
