| RIM-7 Sea Sparrow | |
|---|---|
 Jordon R. Beesley (Mass Communication Specialist 2nd Class) · Public domain · source | |
| Name | RIM-7 Sea Sparrow |

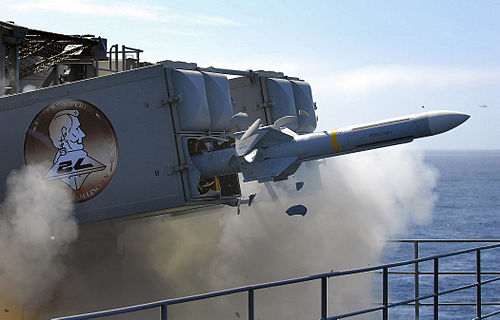

| Caption | A RIM-7 Sea Sparrow aboard USS Constellation (CV-64) in 1986. |
| Type | Surface-to-air missile |
| Origin | United States |
| Used by | See #Operators |
| Designer | Raytheon |
| Manufacturer | Raytheon |
| Production date | 1969 |
| Service | 1976–present |
| Engine | Hercules MK 58 solid-fuel rocket |
| Weight | 510 lb (231 kg) |
| Length | 12 ft (3.7 m) |
| Diameter | 8 in (203 mm) |
| Wingspan | 3 ft 4 in (1.02 m) |
| Speed | Mach 2.5+ |
| Vehicle range | 10 nmi (19 km) |
| Guidance | Semi-active radar homing |
| Launch platform | Mk 29 GMLS, Mk 41 VLS, others |
RIM-7 Sea Sparrow. It is a surface-to-air missile system developed from the AIM-7 Sparrow air-to-air missile to provide United States Navy warships with a point-defense capability against anti-ship missiles and aircraft. The system was designed by Raytheon and entered service in the late 1960s, becoming a cornerstone of NATO naval air defense for decades. Its evolution from an aircraft weapon to a versatile naval system involved significant integration with shipboard radars and launching systems.
Development and Design
The program originated in the early 1960s under the direction of the United States Department of Defense to address the growing threat of Soviet Union anti-ship missiles like the P-15 Termit. Engineers at Raytheon adapted the AIM-7E variant, modifying its semi-active radar homing seeker and rocket motor for surface launch. Key to the system was the development of the Mark 115 radar illuminator and the Mark 29 Guided Missile Launching System, an eight-cell launcher that required manual reloading. This Basic Point Defense Missile System (BPDMS) provided a relatively lightweight and affordable option for escort vessels like destroyer escorts and auxiliary ships. Further advancements integrated the missile with the AN/SPS-48 and AN/SPS-49 radar systems, improving target engagement capabilities.
Operational History
The system first achieved operational capability aboard the USS Bradley (FF-1041) in 1969. It saw widespread deployment during the Cold War on numerous United States Navy vessels, including aircraft carriers like the USS Kitty Hawk (CV-63) and *Oliver Hazard Perry*-class frigates. A significant operational test occurred during the Iran–Iraq War, where it was used in combat by the Royal Saudi Navy. The missile family proved its utility in fleet exercises like RIMPAC and was a standard fit for many allied navies within NATO. While largely superseded in U.S. service by the RIM-162 ESSM, earlier RIM-7 versions remain in active use with several international operators.
Variants
* RIM-7E: The initial naval version derived from the AIM-7E. * RIM-7H: An improved model with a new warhead and fuzing. * RIM-7M: A major upgrade incorporating the monopulse seeker from the AIM-7M, offering better performance against low-altitude targets and electronic countermeasures. * RIM-7P: Enhanced with improved guidance software and a more capable rocket motor for increased range. * RIM-7P TC: A "Tail Control" variant designed for cold launch from the Mark 41 Vertical Launching System. * RIM-7R: A short-lived dual-mode (IR/Radar) seeker version, later canceled. * RIM-162 ESSM: Although a new missile, it represents the evolutionary successor, sharing the same basic diameter but with vastly improved performance.
Operators
Current Operators
* : Bahrain Defence Force * : Brazilian Navy * : Royal Canadian Navy (retired from *Halifax*-class) * : Chilean Navy * : Royal Danish Navy * : Egyptian Navy * : German Navy (retired) * : Hellenic Navy * : Japan Maritime Self-Defense Force (licensed production as RIM-7F/M) * : Royal Netherlands Navy (retired) * : Royal Norwegian Navy * : Portuguese Navy * : Royal Saudi Navy * : Republic of Korea Navy * : Spanish Navy * : Republic of China Navy * : Royal Thai Navy * : Turkish Naval Forces * : United States Navy (largely retired from front-line service)
Specifications
The RIM-7M, a common variant, is representative of the family. It is 12 feet long, weighs 510 pounds, and has a diameter of 8 inches. Propulsion is provided by a Hercules MK 58 solid-fuel rocket motor, enabling speeds exceeding Mach 2.5. Its effective engagement range is approximately 10 nautical miles against aircraft and shorter ranges against maneuvering anti-ship missiles. The guidance system uses semi-active radar homing, where the launching ship's radar illuminates the target for the missile's seeker head. The warhead is a high-explosive blast-fragmentation type triggered by a proximity fuze. The system can be launched from the dedicated Mark 29 Guided Missile Launching System, the Mark 48 Vertical Launching System, and with adaptations, the ubiquitous Mark 41 Vertical Launching System.
