Project Azorian

Project Azorian
U.S. Government · Public domain · source
Name	Project Azorian
Partof	Cold War intelligence operations
Objective	Recovery of Soviet submarine K-129
Date	1974
Executed by	CIA
Outcome	Partial success

Project Azorian. It was a top-secret Cold War operation undertaken by the CIA in 1974 to recover the sunken Soviet submarine K-129 from the floor of the Pacific Ocean. The audacious mission, conducted under the guise of deep-sea mining, involved the construction of a massive, purpose-built ship, the Hughes Glomar Explorer, and a complex submersible capture vehicle. While the full results remain classified, the operation is considered a landmark feat of naval engineering and a significant, if risky, intelligence coup against the Soviet Navy.

Background and context

In March 1968, the Soviet ballistic missile submarine K-129 sank in the North Pacific Ocean, approximately 1,560 nautical miles northwest of Oahu, Hawaii, with the loss of all 98 crewmen. Despite an extensive search by the Soviet Pacific Fleet, the wreck was not located. However, the United States Navy's SOSUS acoustic detection network and intelligence ships like the USNS Mizar successfully pinpointed the wreck site in waters over 16,000 feet deep. The potential intelligence value of recovering the submarine's SS-N-4 Sark missiles, its codebooks, and cryptographic equipment was immense, offering insights into Soviet strategic forces and naval capabilities. This opportunity prompted Director of Central Intelligence Richard Helms to approve a highly ambitious and technically daunting recovery plan, which was later greenlit by President Richard Nixon.

The recovery operation

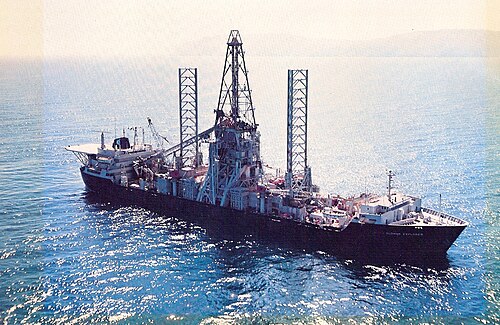

To execute the recovery, the CIA partnered with the billionaire industrialist Howard Hughes and his company, Global Marine Development, to provide a plausible cover story. The public cover was that Hughes was building a ship, the Hughes Glomar Explorer, for deep-sea mining of manganese nodules. The actual recovery system, built by Lockheed's secret Sunnyvale facility, was a gigantic steel claw, known as the "Capture Vehicle" or "Clementine," designed to be lowered from the ship to grasp the submarine hull. In the summer of 1974, the ship sailed to the recovery site. The operation succeeded in lifting a portion of the K-129 from the seabed, but during the ascent, a critical section of the hull broke away, falling back to the ocean floor. The recovered section, estimated to be about 38 feet long, was brought into the ship's massive internal moon pool.

Technical details and challenges

The engineering challenges were unprecedented. The Hughes Glomar Explorer itself was a marvel, featuring a massive central well, a moon pool, and a sophisticated dynamic positioning system to hold station in deep water. The heavy-lift system, comprising miles of special steel pipe and the enormous claw, had to operate reliably under extreme pressure and in complete secrecy. The design and construction involved numerous contractors, including Global Marine Development, Lockheed Missiles and Space Company, and the Electric Boat division of General Dynamics. One of the greatest hurdles was developing the gimbaled platform system inside the ship to compensate for wave motion and maintain a stable lift. The immense depth and the corroded, fragile state of the Soviet submarine K-129's hull presented constant, unpredictable risks throughout the delicate operation.

Secrecy and public disclosure

The CIA's security apparatus, dubbed the "Jennifer Project" in some internal documents, was extensive. The cover story involving Howard Hughes and manganese nodule mining was widely reported in media outlets like *The Los Angeles Times*. However, in 1974, investigative journalists from The Los Angeles Times and later Jack Anderson began to uncover details of the true mission. A major breach occurred in 1975 when burglars stole sensitive documents from Hughes' Summa Corporation offices, and details were published by the *The New York Times* and other outlets. Faced with impending exposure, the CIA sought a injunction, leading to the famous "Glomar response" where the agency stated it could "neither confirm nor deny" the story, a legal precedent that persists in United States government secrecy practices.

Aftermath and legacy

The intelligence haul from the recovered section is still classified, but it is reported to have included two SS-N-4 Sark nuclear torpedoes, some cryptographic machines, and the bodies of six Soviet sailors, who were given a formal burial at sea in a ceremony filmed by the CIA. The operation demonstrated profound capabilities in deep-submergence engineering and oceanography. The Hughes Glomar Explorer was later converted for actual deep-sea drilling and was involved in projects like the Kola Superdeep Borehole site survey. The story of the operation entered public consciousness through books like *Blind Man's Bluff* and continues to be a subject of fascination, illustrating the extreme lengths and technological innovation pursued during the intelligence battles of the Cold War.
