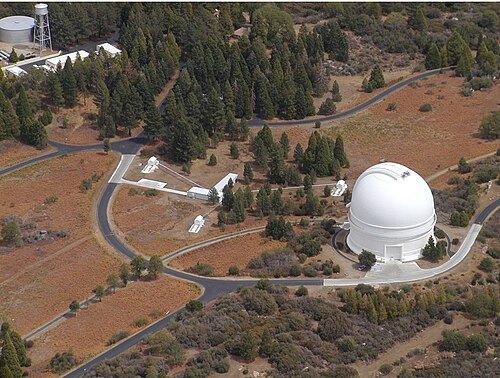

Palomar Testbed Interferometer

Palomar Testbed Interferometer
source
Name	Palomar Testbed Interferometer
Organization	NASA, Jet Propulsion Laboratory
Location	Palomar Observatory, California
Wavelength	Near-infrared
Built	1995–1998
First light	1998
Decommissioned	2008
Style	Stellar interferometer
Telescopes	3 × 0.4 m siderostats
Baseline	86–110 m

Palomar Testbed Interferometer. It was a pioneering astronomical interferometer developed as a technology demonstration for future space-based missions. Located at the historic Palomar Observatory in California, the instrument was a key project of the Jet Propulsion Laboratory and NASA's Origins Program. Its primary mission was to validate advanced interferometric techniques and precision optical metrology in a ground-based environment, directly informing the design of subsequent observatories.

Overview and Purpose

Conceived in the mid-1990s, this project was created to serve as a practical testbed for the complex technologies required for high-angular-resolution astronomy. The overarching goal was to reduce technical risk for ambitious future projects like the Space Interferometry Mission and the Terrestrial Planet Finder. By operating on the grounds of the established Palomar Observatory, it leveraged existing infrastructure while pushing the boundaries of long-baseline interferometry. Its work focused on demonstrating stable, precision measurement of stellar positions and diameters, which are critical for detecting exoplanets via the astrometric method and characterizing stellar environments.

Technical Specifications and Design

The instrument utilized three independent 0.4-meter siderostats, which were flat mirrors that directed starlight into a central beam-combining laboratory. These collectors were mounted on movable delay line carts that could be positioned along Y-shaped tracks, providing baseline lengths variable from 86 to 110 meters. It operated primarily in the near-infrared spectrum, specifically in the K band around 2.2 microns, to minimize the degrading effects of atmospheric seeing. A critical innovation was its implementation of a dual-star architecture, allowing it to simultaneously track a science target and a nearby reference star to correct for atmospheric turbulence, a technique essential for achieving microarcsecond-level precision. The system's heart was a sophisticated metrology system using laser beams to monitor the internal optical path lengths to nanometer accuracy.

Scientific Discoveries and Observations

Despite its engineering focus, it produced significant scientific results that advanced stellar astrophysics. It made precise measurements of the diameters and shapes of numerous stars, including red giants and Cepheid variable stars, refining the period-luminosity relation critical to cosmic distance scale. The instrument successfully detected the rotational oblateness of the fast-spinning star Altair, providing direct observational evidence of stellar deformation. It also contributed to the characterization of dust shells around asymptotic giant branch stars and performed early studies of the environments of young stellar objects. These observations validated the instrument's capabilities and provided a wealth of data for the broader astronomical community.

Operational History and Decommissioning

Construction began in 1995, with first fringes achieved in 1998, marking the start of its operational phase. Throughout the following decade, it served as a workhorse for both technology validation and guest observer programs supported by NASA. The project faced and overcame significant challenges related to adaptive optics integration, vibration control, and data processing. By the mid-2000s, having successfully fulfilled its primary mission objectives and with funding priorities shifting, plans for decommissioning were made. It ceased routine operations in 2008, and its hardware was subsequently removed from the Palomar Observatory site, though much of its optical infrastructure was repurposed for other experimental efforts.

Legacy and Influence on Future Instruments

The project's legacy is profound, as it directly paved the way for a new generation of interferometric instruments. The lessons learned in precision metrology, fringe tracking, and system control were fundamental to the development of the Keck Interferometer and the Very Large Telescope Interferometer. Its technology and operational experience heavily influenced the design studies for the Space Interferometry Mission and concepts for the Darwin mission. Furthermore, the knowledge gained continues to inform current projects aiming to directly image and characterize extrasolar planets, such as the proposed Habitable Exoplanet Observatory. It stands as a critical proof-of-concept that demonstrated the feasibility of extremely precise stellar interferometry from the ground.
