Name	N1

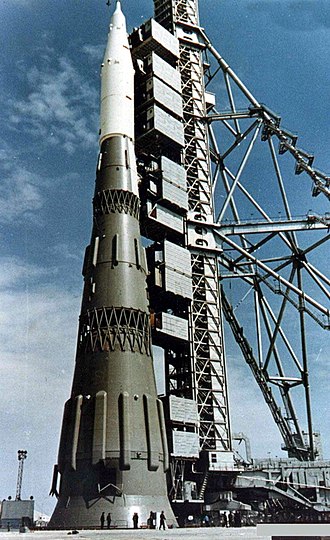

Caption	The N1 on the launchpad at Baikonur Cosmodrome.
Function	Super heavy-lift launch vehicle
Manufacturer	OKB-1 (Sergei Korolev)
Country	Soviet Union
Height	105.3 m
Diameter	17 m
Mass	2,750,000 kg
Status	Cancelled
First	21 February 1969
Last	23 November 1972

N1 (rocket). The N1 was a super heavy-lift launch vehicle developed by the Soviet Union during the Space Race to enable crewed lunar landings and compete with the American Apollo program. Designed under the leadership of chief designer Sergei Korolev at OKB-1, it was the Soviet counterpart to the Saturn V but suffered from catastrophic launch failures. The program's repeated disasters and the success of Apollo 11 ultimately led to its cancellation, marking the end of the Soviet crewed lunar effort.

Development history

The N1's development was initiated in the early 1960s as a direct response to the ambitious goals of the Apollo program announced by President John F. Kennedy. The project was championed by Sergei Korolev, but after his death in 1966, leadership passed to Vasily Mishin. Political and institutional rivalries, particularly with the design bureau of Vladimir Chelomey who advocated for alternative rockets like the UR-500, complicated and delayed the program. The development was also hampered by a lack of cohesive national support and insufficient funding compared to the immense resources dedicated to the Saturn V by NASA.

Design and specifications

The N1 was a massive, five-stage vehicle standing over 105 meters tall, with a first stage powered by a complex cluster of 30 NK-15 engines developed by the Kuznetsov Design Bureau. This engine cluster, arranged in two concentric rings, was a key design feature but introduced significant technical challenges in managing thrust and plumbing. Unlike the Saturn V's fewer, more powerful engines, the N1 relied on many smaller engines, a decision partly driven by the inability of Soviet industry to quickly produce larger, high-thrust rocket engines. The upper stages utilized modified versions of the NK-15 and other engines, culminating in the L3 complex which included the LK Lander and Soyuz 7K-LOK orbiter for the lunar mission profile.

Launch failures

All four launch attempts of the N1 ended in catastrophic failure, each occurring within minutes of liftoff from Baikonur Cosmodrome. The first flight on 21 February 1969 was destroyed by a fire in the engine bay, triggering a shutdown that caused the rocket to crash back onto the launchpad, creating one of the largest non-nuclear explosions in history. The second launch on 3 July 1969, just weeks before Apollo 11, failed due to a debris ingestion event that caused the premature shutdown of the first stage. Subsequent launches in 1971 and 1972 failed from pogo oscillations and other propulsion system failures, with the final flight experiencing a structural breakup of the first stage. These disasters were compounded by the lack of a comprehensive ground-testing program for the fully assembled first stage.

Legacy and cancellation

Following the fourth failure and the clear success of the Apollo program, the Soviet political leadership, including Leonid Brezhnev, officially canceled the N1 program in 1974. The remaining hardware was ordered destroyed, and the Soviet crewed lunar landing program was abandoned. The cancellation solidified the American victory in the Space Race to the Moon. Many N1 technologies and engineers were later redirected to other projects, such as the development of the Energia super-heavy rocket and the Salyut and Mir space stations. The failure of the N1 also led to a major reorganization of the Soviet space industry under the new leadership of Valentin Glushko.

Cultural impact

While largely secret during the Cold War, the story of the N1's failures became a prominent symbol of the hidden setbacks within the Soviet space program, contrasting with its earlier successes like Sputnik 1 and Yuri Gagarin. It has been featured in numerous documentaries, books, and media analyzing the Space Race, such as the series Space Race (TV series). The rocket is often cited in discussions of engineering complexity and project management failures. In modern times, its legacy is acknowledged in museums, and its design influenced later Russian launch vehicle concepts, with its story serving as a cautionary tale in aerospace history.
