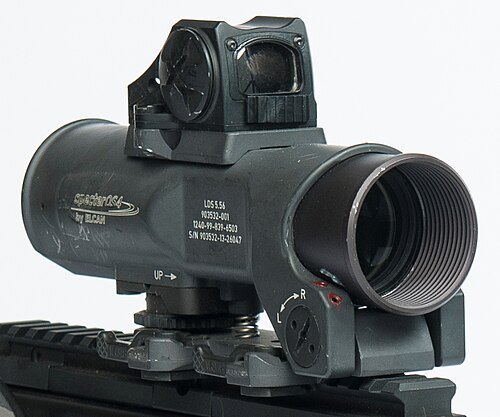

Original Ministry of Defence photograph by Stuart Hill, rotation and cropping by · OGL 3 · source
Title	MIL-STD-1913
Status	Active
Year started	1993
Year latest	2020
Related standards	NATO STANAG 4694, SAE AS5715
Governing body	United States Department of Defense

MIL-STD-1913. Commonly known as the Picatinny rail or simply a Picatinny, it is a standardized mounting platform for attaching accessories to firearms. Developed by the United States Army at the Picatinny Arsenal in New Jersey, the standard defines the precise dimensions and tolerances for a rail with a series of transverse slots. This system allows for the consistent and repeatable attachment of a wide array of tactical equipment, fundamentally changing small arms ergonomics and capability. Its adoption by NATO and widespread commercial use has made it one of the most influential firearm interface standards in the world.

Overview

The standard provides a universal interface for mounting optical sights, laser aiming modules, tactical lights, foregrips, and bipods to military and civilian small arms. The design consists of a rail with a series of evenly spaced recoil grooves, which interface with a clamping device on the accessory. This system allows for secure attachment under recoil and rapid reconfiguration without the need for permanent gunsmithing. The widespread adoption by forces like the United States Marine Corps and the British Army has driven its global proliferation. Its success led to the development of the similar but not identical Weaver rail mount, though the Picatinny standard offers greater consistency and strength.

Development and history

The development was initiated by the United States Army Armament Research, Development and Engineering Center (ARDEC) to address the lack of a standardized mounting solution for the new generation of advanced infantry weapons. Work was conducted primarily at the Picatinny Arsenal, a historic center for military research dating back to the American Civil War. The standard was formally published in February 1993, with its designation honoring the arsenal. Its creation was driven by lessons from conflicts like the Vietnam War and the Gulf War, where modularity proved essential. Subsequent revisions, including a significant update in 2020, have refined tolerances and testing requirements to ensure compatibility with modern, high-precision equipment.

Technical specifications

The rail is defined as a 3.385-inch wide bracket with a series of 0.206-inch wide slots spaced 0.394 inches apart, center-to-center. The depth of the rail and the angular specifications of the recoil grooves are precisely controlled to ensure accessories from different manufacturers maintain zero. The standard specifies materials, hardness, and finish requirements to ensure durability in harsh environments, from the deserts of Operation Iraqi Freedom to the mountains of Operation Enduring Freedom. It also defines rigorous testing for shock, vibration, and environmental exposure to MIL-STD-810 criteria. The mechanical interface is designed to withstand the repeated recoil forces of weapons like the M4 carbine and the M249 light machine gun.

Applications and usage

Originally fielded on the M16A2 and M4 carbine, the rail system is now integral to nearly all modern Western infantry weapons, including the FN SCAR, Heckler & Koch HK416, and SIG Sauer SIG MCX. It is the basis for the United States Special Operations Command (USSOCOM) SOPMOD accessory kit. Beyond firearms, the interface has been adapted for use on crew-served weapons, vehicles, and aircraft for mounting cameras and sensors. Its use by elite units such as the Delta Force and the British Special Air Service (SAS) cemented its reputation for reliability. The system's versatility is showcased in global conflicts and counter-terrorism operations conducted by the Israeli Defense Forces and Australian Defence Force.

Variants and related standards

The most direct variant is the commercial Weaver rail mount, which has narrower and non-standardized slot spacing. The NATO equivalent, NATO STANAG 4694, is dimensionally identical but includes additional testing protocols. The KeyMod and M-LOK systems, developed by Noveske Rifleworks and Magpul Industries respectively, represent later generations designed to be lighter and more ergonomic. The SAE International standard AS5715 is a commercial aerospace derivative. The United States Navy also employs specialized versions for mounting equipment on vessels. The Russian Armed Forces developed the similar Zenitco rail system, though it is not directly compatible.

Impact and legacy

The standardization revolutionized small arms design, enabling the modern modular weapon system and fostering a global industry of accessory manufacturers. It played a critical role in the equipment modernization programs following the September 11 attacks. The rail's design influenced subsequent attachment systems and remains a benchmark for accessory interoperability. Its adoption into NATO STANAG protocols ensured its longevity within the North Atlantic Treaty Organization. The Picatinny rail is arguably as significant to infantry equipment as the development of the M1 Garand or the STANAG magazine. It continues to be specified in major defense contracts worldwide, from the United States Army's Next Generation Squad Weapon program to contracts with FN Herstal and Colt's Manufacturing Company.
