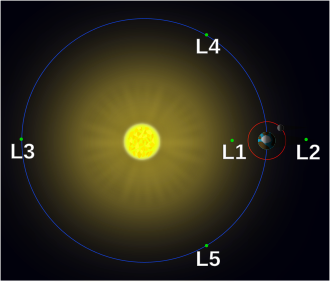

Caption	Diagram showing the five points relative to two orbiting bodies.
Fields	Celestial mechanics, Astrodynamics
Named after	Joseph-Louis Lagrange

Lagrange point. In celestial mechanics, a Lagrange point is a position in an orbital configuration of two large bodies where a smaller object, affected only by gravity, can maintain a stable position relative to them. These equilibrium solutions to the three-body problem are pivotal for placing spacecraft in positions requiring minimal fuel for station-keeping. The most commonly referenced points are those in the Sun-Earth system and the Earth-Moon system, which serve as strategic locations for space observatories and other scientific missions.

Definition and discovery

The concept was first theorized by the mathematician Joseph-Louis Lagrange in his 1772 work, "Essai sur le Problème des Trois Corps," which built upon earlier analyses by Leonhard Euler. Lagrange identified five specific equilibrium points within the framework of the circular restricted three-body problem, where the gravitational pulls of two massive bodies and the centripetal force of a smaller object's orbital motion precisely balance. This theoretical prediction remained a mathematical curiosity until the 20th century, when the advent of space exploration provided practical confirmation. The discovery of natural occupants, such as the Trojan asteroids at the Jupiter-Sun points, validated his centuries-old calculations and integrated them into modern astrodynamics.

Stability and classification

The five points are labeled L1 through L5 and are categorized by their orbital stability. Points L1, L2, and L3 are situated along the line connecting the two primary masses and are considered positions of unstable equilibrium, akin to balancing a ball on a saddle. Objects here require periodic small thruster adjustments to maintain their station, making them metastable. In contrast, points L4 and L5, which form equilateral triangles with the two primaries, can be dynamically stable under certain mass ratios, as defined by the Routh criterion. This stability is exemplified by the natural collections of asteroids found at the L4 and L5 points of the Sun-Jupiter system.

Natural and artificial objects

Naturally occurring objects are most famously observed at the stable L4 and L5 points of various planetary systems. The Jupiter trojans, including the Greek camp and Trojan camp asteroids, are the most prominent examples, with thousands cataloged by surveys like the Sloan Digital Sky Survey. Other systems, such as Mars with its Mars trojans and Saturn with its moon-moon trojans like Telesto and Calypso, also host natural occupants. Artificially, numerous spacecraft have been placed at the metastable points, particularly L1 and L2, including the Solar and Heliospheric Observatory at Sun-Earth L1 and the James Webb Space Telescope at Sun-Earth L2.

Applications and mission examples

These locations offer unique advantages for spacecraft requiring a stable vantage point with clear lines of sight and minimal orbital disturbances. The Sun-Earth L1 point is ideal for monitoring solar wind, as demonstrated by the Advanced Composition Explorer and the Deep Space Climate Observatory. The Sun-Earth L2 point, located in the Earth's shadow, provides a thermally stable environment for infrared astronomy, utilized by the Planck mission and the Herschel Space Observatory. Proposed future applications include using the Earth-Moon L2 point as a staging area for NASA's Artemis program and the conceptual L5 Society advocating for space-based solar power stations.

Mathematical derivation

The positions are derived from solutions to the equations of motion within the circular restricted three-body problem, a special case where two primary masses move in circular orbits about their common barycenter, and a third particle of negligible mass moves under their influence. Applying the centrifugal and Coriolis forces in a rotating coordinate system simplifies the potential function, known as the effective potential. The equilibrium points are found where the gradient of this effective potential vanishes. Solving these conditions yields the collinear points (L1, L2, L3) algebraically and the triangular points (L4, L5) geometrically, confirming they form equilateral triangles with the primaries as predicted by Lagrange.
