Jacquard loom

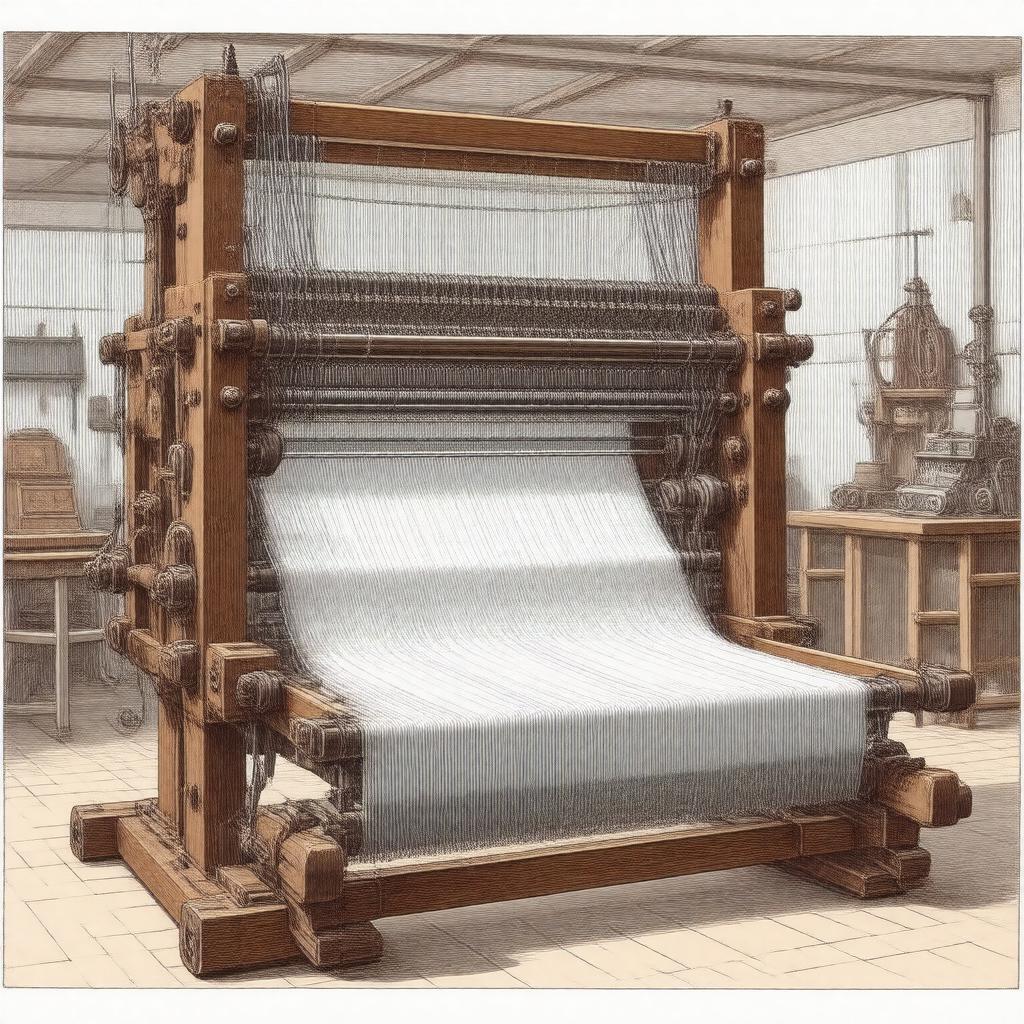

Jacquard loom. The Jacquard loom is a mechanical loom, invented by Joseph Marie Jacquard in 1804, that simplified the process of manufacturing textiles with complex patterns such as brocade, damask, and matelassé. Its key innovation was the use of punched cards to control the sequence of operations, allowing a single weaver to produce intricate designs that previously required a drawboy or multiple assistants. This invention is widely regarded as a critical precursor to modern computer programming and data storage, fundamentally transforming both textile manufacturing and the history of technology.

History and development

The development of the Jacquard loom built upon centuries of prior innovation in textile machinery, including earlier draw looms and the inventions of figures like Jacques de Vaucanson. Joseph Marie Jacquard, a Lyonnais weaver and merchant, presented his refined mechanism to the French Academy of Sciences in 1801, with a perfected model emerging by 1804. His work was supported by the Consular government of Napoleon Bonaparte, which saw its potential for the vital silk industry in regions like Lyon. Initial resistance from weavers fearing unemployment led to sabotage and protests, but the loom's efficiency proved irresistible. The technology was rapidly adopted across Europe, with significant centers of use developing in cities such as Spitalfields in London and later in Lowell, Massachusetts, during the Industrial Revolution.

Mechanism and operation

The core mechanism of the loom centers on a train of interconnected punched cards, each representing one row or pick of the design. These cards are laced together into a continuous chain that passes over a rectangular box called the card reader. A set of needles presses against the card; where a hole is punched, the needle passes through, activating a hook that lifts its associated warp thread via a harness and a heald. Where there is no hole, the needle is pushed back, and the hook is bypassed, leaving the warp thread down. This binary system of raised or lowered threads creates a shed through which the weft is passed by a flying shuttle. The sequence of cards dictates the entire pattern, allowing for an unprecedented number of warp threads to be controlled independently, far surpassing the capabilities of earlier drawloom mechanisms operated manually.

Impact on textile manufacturing

The introduction of the loom revolutionized the textile industry by dramatically increasing the speed, complexity, and reliability of patterned fabric production. It rendered the labor-intensive and skill-dependent drawboy obsolete, consolidating the weaving process under the control of a single operator. This contributed to the growth of industrial-scale production in manufacturing centers from France to England and the United States, particularly in the silk weaving and later worsted industries. The ability to mass-produce elaborate fabrics like brocade and tapestry at lower cost made them accessible to a broader market, influencing fashion and interior design throughout the 19th century. It also intensified the shift from cottage industry to the factory system, playing a significant role in the broader socio-economic transformations of the Industrial Revolution.

Influence on computing

The conceptual and mechanical principles of the Jacquard loom had a profound and direct influence on the development of computing. The use of binary information (hole/no hole) stored on a reusable medium (punched cards) inspired later pioneers of computation. Charles Babbage planned to use similar punched cards to input data and programs into his Analytical Engine, a design later elaborated upon by Ada Lovelace. In the late 19th century, Herman Hollerith used punched cards for data processing in the 1890 United States Census, founding the company that would become IBM. This lineage establishes the loom as a fundamental precursor to programmability and data storage, creating a direct technological bridge from textile automation to the history of computing hardware.

Modern applications and legacy

While modern industrial weaving employs electronic dobby and rapier looms controlled by computer-aided design software, the core principle of programmed pattern selection endures. The term "Jacquard" is still used today to describe any fabric, whether woven or knit, that features a complex integral pattern, such as in modern Jacquard knitting machines. The original mechanical looms are preserved in museums worldwide, including the Science Museum in London and the Musée des Tissus et des Arts Décoratifs in Lyon. The legacy of the Jacquard loom is celebrated not only as a pinnacle of mechanical engineering of the Industrial Revolution but also as a seminal innovation that helped seed the ideas leading to the Digital Revolution.
