High-frequency direction finding

High-frequency direction finding
source
Name	High-frequency direction finding
Classification	Signals intelligence
Related	Radio direction finding, Yagi–Uda antenna, Adcock antenna

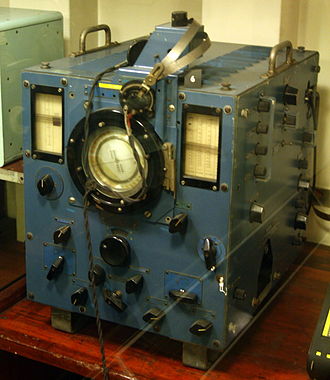

High-frequency direction finding. Often abbreviated as HF/DF or by the nickname Huff-Duff, it is a specialized form of radio direction finding that operates within the high frequency spectrum, also known as the shortwave band. The technique involves determining the bearing of a radio transmitter by analyzing the characteristics of its received signal, primarily through the use of directional antenna arrays. Developed extensively during World War II, it became a pivotal signals intelligence tool for locating enemy communications, most famously the U-boat transmissions in the Battle of the Atlantic.

Principles of operation

The fundamental principle relies on the wave interference patterns created when a radio wave arrives at multiple antenna elements spaced at precise intervals. Systems typically employ an array of antennas, such as the Adcock antenna or a circular array, which are designed to be sensitive to the vertical polarization common in HF skywave signals. By comparing the signal phase or amplitude at different points in the array, an electronic goniometer or modern digital signal processing algorithms can compute the azimuth from which the signal originated. This process must account for ionospheric effects like skywave propagation and multipath interference, which can refract signals over great distances but also distort true bearing information. Key figures in developing the underlying electromagnetic theory include Heinrich Hertz and Guglielmo Marconi, while practical implementation was advanced by engineers like Frank Adcock of the Royal Air Force.

Historical development

Early experiments in radio direction finding were conducted by the United States Navy and others following the pioneering work of Marconi. Significant pre-war development occurred in Britain at the Admiralty Signal and Radar Establishment and in Germany by the Kriegsmarine. The outbreak of World War II provided immense impetus, with the Allies establishing a vast network of HF/DF stations along coasts from Greenland to the Azores to counter the German Navy's U-boat threat. The British Royal Navy's work, integrated with efforts at Bletchley Park and the Government Code and Cypher School, proved decisive. Concurrently, the Imperial Japanese Navy used similar techniques in the Pacific War. Post-war, the technology was further refined during the Cold War by organizations like the National Security Agency and the Royal Canadian Navy, becoming a staple for electronic intelligence collection.

System components

A classic HF/DF station comprises several key subsystems. The antenna array is foremost, often a large, circular arrangement of Adcock antenna pairs or a Wullenweber array (also known as an AN/FLR-9), which provides 360-degree coverage. These feed into a central receiver hut housing sensitive superheterodyne receivers and the goniometer for manual bearing estimation. Modern installations replace the goniometer with a correlator and analog-to-digital converter linked to a computer running Fast Fourier transform algorithms. Supporting infrastructure includes accurate frequency standards, such as an atomic clock, and extensive radio frequency filtering to mitigate interference. Systems are often deployed at remote sites like Diego Garcia or RAF Chicksands to minimize local radio noise.

Applications

The primary application has historically been and remains military intelligence, specifically signals intelligence and electronic warfare. Naval forces use shipborne HF/DF, such as the FR-710 system, to track adversary vessels, while ground stations operated by agencies like the Australian Defence Force or the French Navy contribute to global monitoring networks. In search and rescue, organizations including the United States Coast Guard and the International Civil Aviation Organization use it to locate emergency distress signals from EPIRB beacons. It also supports radio propagation research by institutions like the Stanford Research Institute and aids in enforcing radio regulations by identifying sources of pirate radio or interference, as done by the Federal Communications Commission.

Limitations and countermeasures

The accuracy of HF/DF is inherently limited by ionospheric conditions, which can cause bearing error due to wave tilt and multipath propagation, especially at night. The physical size of the antenna arrays also makes them conspicuous and immobile. Adversaries employ numerous countermeasures, such as using burst transmissions, frequency hopping, and low probability of intercept waveforms to reduce detection time. The use of directional antennas by the transmitter, as practiced by the Soviet Navy, or operating from locations with complex terrain like the Norwegian Sea, can further obscure the true signal origin. Modern electronic counter-countermeasures focus on advanced space-time adaptive processing and integrating HF/DF data with other intelligence, surveillance, and reconnaissance sources like SIGINT satellites.
