F-106 Delta Dart

F-106 Delta Dart
Staff Sgt. John K. McDowell · Public domain · source
Name	F-106 Delta Dart

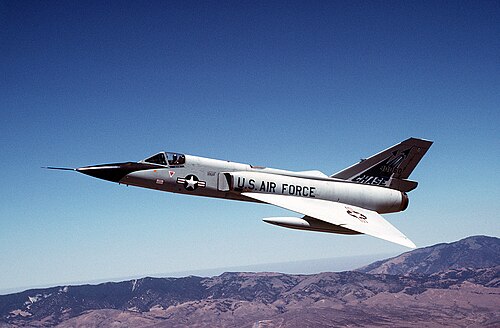

Caption	An F-106A of the United States Air Force in flight.
Type	Interceptor aircraft
National origin	United States
Manufacturer	Convair
First flight	26 December 1956
Introduction	June 1959
Retired	August 1988 (USAF)
Status	Retired
Primary user	United States Air Force
Number built	342
Developed from	F-102 Delta Dagger

F-106 Delta Dart. The Convair F-106 Delta Dart was the ultimate dedicated interceptor aircraft developed for the United States Air Force during the Cold War. Designed as a supersonic all-weather missile-armed interceptor, it was the primary component of the Semi-Automatic Ground Environment air defense system for over two decades. Renowned for its performance, it held the world absolute speed record for a single-engine aircraft and served as the USAF's last dedicated interceptor.

Development and design

The aircraft's origins trace to the 1954 interceptor program which sought a superior successor to the F-102 Delta Dagger. Engineers at Convair, a division of General Dynamics, extensively redesigned the F-102 airframe, incorporating the more powerful Pratt & Whitney J75 turbojet engine and the advanced Hughes MA-1 integrated fire-control system. This system was fully integrated with the Semi-Automatic Ground Environment network, allowing for ground-controlled interception vectors. The design featured a distinctive delta wing configuration and a streamlined area-ruled fuselage to minimize wave drag at supersonic speeds. Primary armament was intended to be the AIR-2 Genie nuclear rocket and AIM-4 Falcon infrared or radar-guided missiles, all housed in an internal weapons bay to maintain aerodynamic efficiency.

Operational history

Entering service with the Air Defense Command in 1959, the F-106 quickly became the cornerstone of continental air defense throughout the 1960s and 1970s. It was operated primarily by Air National Guard units and active-duty squadrons based across the United States, including key locations like McChord Air Force Base and Tyndall Air Force Base. The aircraft's career was marked by a high state of readiness during periods of heightened tension such as the Cuban Missile Crisis. Despite its formidable design, the F-106 never saw combat against its intended Soviet Union adversaries. Its service life was extended through various upgrade programs, but the type was gradually phased out with the arrival of the F-15 Eagle and changing defense priorities, with the last examples retired in 1988.

Variants

The principal production variant was the single-seat F-106A, which constituted the bulk of the fleet. A two-seat combat-capable trainer, the F-106B, was also produced, featuring a tandem cockpit under a lengthened canopy but retaining full operational systems and armament. Several test and research aircraft were modified for special programs, including the NF-106B used for NASA research on vortex flow and the F-106X experimental prototype. Late in its service, some aircraft were modified under the Project Six Shooter program to carry a M61 Vulcan cannon in an internal bay.

Operators

The sole primary operator was the United States Air Force. Within the USAF, it served with multiple units of the Air Defense Command, later renamed the Aerospace Defense Command, and subsequently with the Tactical Air Command. Following drawdowns from active duty, numerous aircraft were transferred to various squadrons of the Air National Guard, including units in California, Massachusetts, Minnesota, and New Jersey. A small number of F-106s were transferred to NASA for use as high-speed research aircraft and pilot training.

Specifications (F-106A)

* **Crew:** 1 * **Length:** 70 ft 8 in (21.55 m) * **Wingspan:** 38 ft 3 in (11.67 m) * **Height:** 20 ft 3 in (6.18 m) * **Empty weight:** 24,420 lb (11,077 kg) * **Max takeoff weight:** 41,831 lb (18,975 kg) * **Powerplant:** 1 × Pratt & Whitney J75-P-17 afterburning turbojet, 24,500 lbf (109 kN) thrust with afterburner * **Maximum speed:** 1,525 mph (2,455 km/h, Mach 2.3) at altitude * **Range:** 1,800 mi (2,900 km, 1,600 nmi) with external tanks * **Service ceiling:** 57,000 ft (17,000 m) * **Armament:** 1 × AIR-2 Genie nuclear rocket & 4 × AIM-4 Falcon air-to-air missiles (or) 4 × AIM-4 Falcon & 1 × M61 Vulcan 20mm cannon (Project Six Shooter)

In popular culture

The F-106 has appeared in several films, notably in the 1980 movie *The Final Countdown*, where it was depicted in Air National Guard markings. It featured in the 1986 film *Iron Eagle* during scenes involving the fictional country of Bilya. The aircraft also appears in numerous flight simulation video games and scale modeling kits. Its distinctive shape and role as a Cold War sentinel have cemented its iconic status in aviation history.
