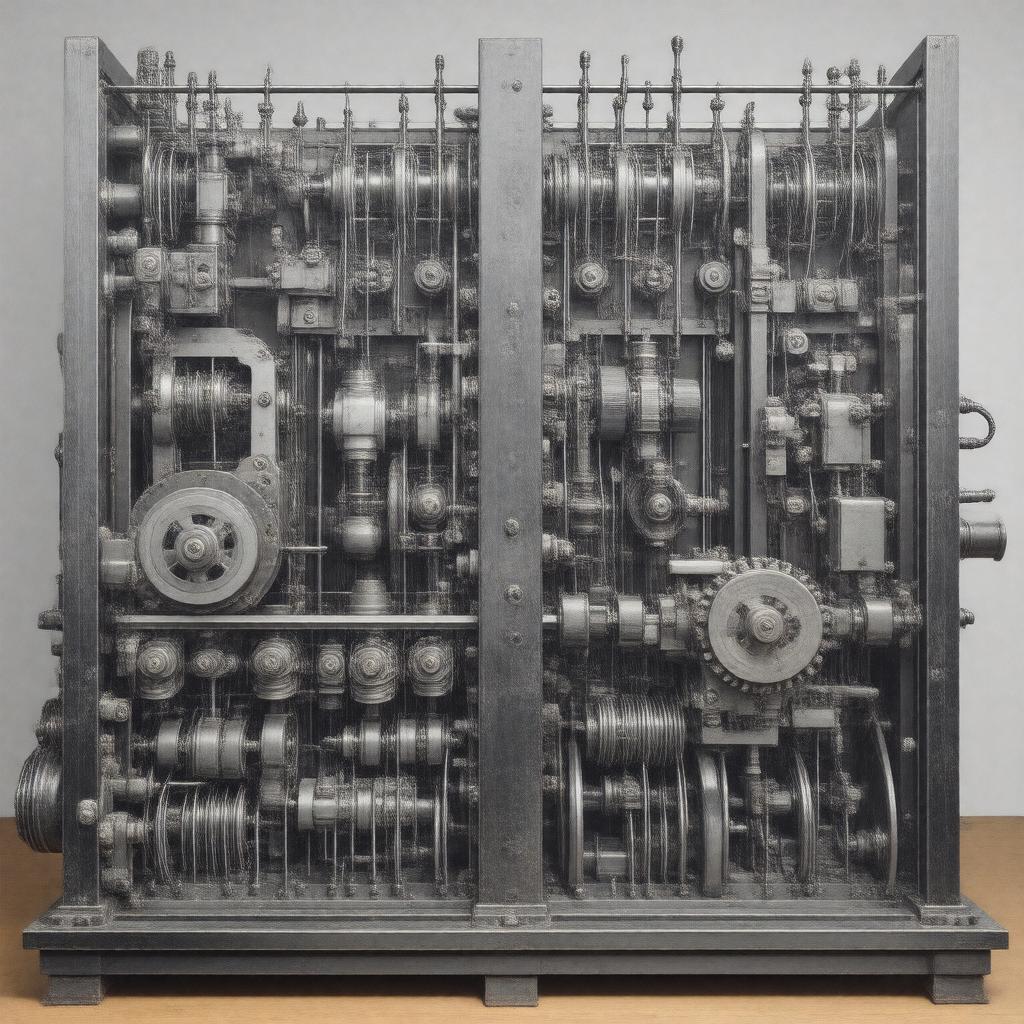

Differential analyzer. The differential analyzer was a pioneering mechanical analog computer designed to solve differential equations by integration. Invented by Vannevar Bush at the Massachusetts Institute of Technology in the late 1920s, it represented a significant leap in computational capability for scientific and engineering problems. These machines used intricate systems of rotating disk integrators, shafts, and gears to model physical systems mathematically, influencing fields from ballistics to nuclear physics.

History

The development of the differential analyzer was driven by the growing computational demands of early 20th-century science and engineering. Building upon earlier mechanical integrators like those developed by James Thomson and refined by his brother Lord Kelvin, Vannevar Bush and his team, including Harold Hazen, constructed the first practical machine at MIT between 1928 and 1931. Funding from the Carnegie Institution of Washington supported this work, which was later expanded upon at other institutions. During World War II, these analyzers became vital tools for military research, used extensively by organizations like the United States Department of War and the British Ministry of Supply for calculating complex artillery tables and other ballistic data.

Design and operation

The machine's core computational element was the disk integrator, a mechanical device based on the planimeter principle, where a rotating disk and a wheel performed the mathematical operation of integration. These integrators were interconnected by long rotating drive shafts that transmitted torque, with differential gears handling addition and subtraction. The entire system was set up or "programmed" manually by technicians using intricate arrangements of bevel gears, universal joints, and clutches to physically represent the equation to be solved. Input functions were typically plotted on input tables and followed by a tracing stylus, while output solutions were drawn as graphs by a pen on an output table.

Applications and impact

Differential analyzers were employed to solve critical problems in numerous scientific and military domains. They calculated trajectories for projectiles and missiles for the United States Army, modeled the electrical behavior of power networks for utility companies, and assisted in the design of particle accelerators like the cyclotron. At the University of Manchester, Douglas Hartree used a British-built analyzer to perform calculations relevant to quantum mechanics and aerodynamics. Their ability to handle non-linear differential equations made them indispensable for pre-digital era research at institutions like the Radiation Laboratory at MIT and the Moore School of Electrical Engineering.

Notable examples

The most famous example was the Rockefeller Differential Analyzer, completed at MIT in 1942 with support from the Rockefeller Foundation. In the United Kingdom, a machine was constructed at the University of Cambridge by John Lennard-Jones, while another major analyzer was built at the University of Manchester by Douglas Hartree and Arthur Porter. The United States Army Ballistic Research Laboratory at the Aberdeen Proving Ground also operated a significant machine. Internationally, versions were developed in Norway at the Norwegian Institute of Technology and in the Soviet Union at the Institute for Precision Mechanics and Computer Engineering.

Legacy and successors

The differential analyzer demonstrated the power of automated computation for complex mathematical modeling, directly paving the way for the electronic computer era. Its limitations in speed and setup complexity were addressed by subsequent projects like the ENIAC at the Moore School of Electrical Engineering and the Whirlwind project at MIT. The conceptual framework of linking computational units influenced early computer architecture, and Vannevar Bush's later vision for information systems, described in his essay "As We May Think", was rooted in this work. Artifacts from these machines are preserved in institutions such as the Smithsonian Institution and the Science Museum, London.
