Curtiss JN-4

Curtiss JN-4
George Johnson, Aviation Section, US Army Signal Corps · Public domain · source
Name	Curtiss JN-4

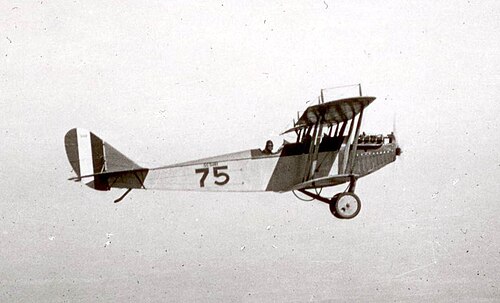

Caption	A Curtiss JN-4 "Jenny" in flight.
Type	Biplane trainer
National origin	United States
Manufacturer	Curtiss Aeroplane and Motor Company
Designer	Glenn H. Curtiss
First flight	1915
Introduction	1915
Retired	1927
Primary user	United States Army Air Service
Number built	~6,813
Developed from	Curtiss JN-3
Variants with their own articles	Curtiss JN-6H

Curtiss JN-4. The Curtiss JN-4, universally known as the "Jenny," was a biplane trainer that became the iconic aircraft of World War I and the formative years of American aviation. Primarily built by the Curtiss Aeroplane and Motor Company, it was the standard trainer for the United States Army Air Service and the Royal Flying Corps in Canada. Its robust design and forgiving flight characteristics made it instrumental in training a generation of pilots, and its post-war surplus availability fueled the barnstorming era and the growth of civil aviation across North America.

Development and design

The aircraft emerged from a collaboration between designers B. Douglas Thomas and Glenn H. Curtiss, evolving from the earlier Curtiss JN-3. The definitive model, the JN-4D, featured a conventional biplane structure with positive stagger, ailerons on both wings, and a sturdy landing gear. It was typically powered by a 90-horsepower Curtiss OX-5 V8 engine, a reliable powerplant that became synonymous with the type. The design prioritized stability and ease of repair, crucial for the rough treatment of student pilots at training fields like Camp Taliaferro and Ellington Field. The Canadian-built version, the Canadair JN-4 (Can.), differed in using a Curtiss OXX-6 engine and had a distinctive rudder shape.

Operational history

During World War I, the Jenny served as the primary trainer for thousands of pilots in the United States Army Air Service and for the Royal Flying Corps operating in Canada. Major training bases included Camp Dick in Texas and Hazelhurst Field in New York. Following the Armistice of 11 November 1918, vast numbers were sold as surplus, flooding the civilian market. This availability directly sparked the "barnstorming" phenomenon of the 1920s, where ex-military pilots performed aerial stunts and offered rides at fairs across the American Midwest. The aircraft also saw early use in aerial photography, air mail experiments for the United States Postal Service, and by fledgling airlines and bush pilots in remote areas like the Canadian Arctic.

Variants

Numerous variants were produced, with the JN-4D being the most common American version. The Canadair JN-4 (Can.), built by Canadian Aeroplanes Ltd. in Toronto, was the standard in Canada. A dedicated seaplane trainer, the JN-4A, was tested by the United States Navy. The improved JN-6 series, including the armed JN-6HG and the JN-6HB with dual controls, saw post-war service with the United States Army Air Service and the United States Marine Corps. The Curtiss JN-6H led to further developments like the Curtiss Oriole.

Operators

The primary military operator was the United States Army Air Service. It was also used extensively by the Royal Flying Corps and later the Royal Canadian Air Force. The United States Navy and United States Marine Corps operated small numbers for training. Post-war, countless aircraft were operated by private owners, barnstorming troupes like those led by Charles Lindbergh, and early commercial ventures such as the Robertson Aircraft Corporation. The Aero Club of America and various flight schools across the continent also relied on the type.

Surviving aircraft

Many JN-4 airframes survive in museums worldwide, a testament to its historical significance. Notable examples are displayed at the National Air and Space Museum in Washington, D.C., the Royal Aviation Museum of Western Canada in Winnipeg, and the National Museum of the United States Air Force at Wright-Patterson Air Force Base. Several aircraft remain airworthy, maintained by organizations like the Old Rhinebeck Aerodrome in New York, where they continue to fly at historical airshows, preserving the sight and sound of early aviation.

Specifications (JN-4D)

* **Crew:** 2 (instructor and student) * **Length:** 27 ft 4 in (8.33 m) * **Wingspan:** 43 ft 7 in (13.28 m) * **Height:** 9 ft 10.5 in (3.01 m) * **Empty weight:** 1,390 lb (630 kg) * **Powerplant:** 1 × Curtiss OX-5 V8 engine, 90 hp (67 kW) * **Maximum speed:** 75 mph (121 km/h, 65 kn) * **Endurance:** 2 hours * **Service ceiling:** 6,500 ft (2,000 m)
