Crookes tube

Crookes tube
source
Name	Crookes tube

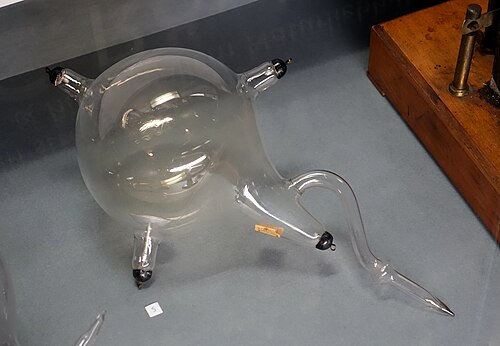

Caption	A late 19th-century Crookes tube demonstrating cathode rays.
Classification	Electron tube
Inventor	William Crookes
Related	Geissler tube, X-ray tube, Cathode-ray tube

Crookes tube. An early experimental electrical discharge tube, invented and extensively studied by the English physicist William Crookes during the 1870s and 1880s. It was pivotal in advancing the understanding of cathode rays and the nature of electricity in rarefied gases, leading directly to the discovery of the electron and X-rays. The device consists of a partially evacuated glass container with embedded metal electrodes, which produce a luminous glow when a high voltage is applied, enabling foundational research in atomic physics.

History and development

The development of this apparatus followed earlier work on Geissler tubes by Heinrich Geissler and Julius Plücker, which produced colorful glows but operated at higher gas pressures. William Crookes, utilizing improved vacuum pumps developed by Johann Heinrich Wilhelm Geißler and Hermann Sprengel, achieved much lower pressures inside his tubes. This advancement was critical, as it shifted the observed phenomena from the glow of the residual gas to the focused beams emanating from the cathode. Crookes's systematic investigations, often conducted in his laboratory in London, were presented to the Royal Society and published in the Philosophical Transactions. His work attracted the attention of numerous contemporary scientists across Europe, including Philipp Lenard in Germany and Jean Perrin in France, who would build upon his findings.

Construction and operation

A typical device was constructed from a sealed glass envelope, often shaped like a cylinder or sphere, with at least two sealed-in metal electrodes acting as the anode and cathode. The internal pressure was reduced to approximately 0.01 pascal, a state now known as a Crookes vacuum. When connected to a high-voltage source like a Ruhmkorff coil or a large induction coil, a potential difference of several thousand volts was applied across the electrodes. This caused the residual gas to ionize, and a visible ray, termed the cathode ray, streamed from the cathode in straight lines, casting sharp shadows of objects placed inside the tube. The glass wall opposite the cathode would often fluoresce with a greenish light where the rays struck it.

Scientific discoveries and impact

Experiments with this apparatus led to several landmark discoveries. Crookes demonstrated that the rays traveled in straight lines, could be deflected by a magnet, and could impart momentum to small paddles, suggesting they were composed of particles. This evidence fueled the "corpuscular" versus "wave" debate about the nature of cathode rays, a controversy addressed decisively by the work of J. J. Thomson at the Cavendish Laboratory in Cambridge. Using a modified tube, Thomson measured the charge-to-mass ratio of the corpuscles, leading to the identification of the electron in 1897. Furthermore, in 1895, Wilhelm Röntgen was using a similar tube covered in black cardboard when he noticed a fluorescent screen nearby glowing, leading to his accidental discovery of X-rays and earning him the first Nobel Prize in Physics.

Types and variations

Several specialized forms were created for different experimental purposes. The Maltese Cross tube contained a metal cross between the cathode and the anode, producing a sharp shadow on the fluorescent end, visually proving the rays traveled in straight lines. The paddle wheel tube featured a lightweight mica wheel on a track; the impact of the rays would cause it to roll, demonstrating they possessed kinetic energy. Philipp Lenard developed a version with a thin aluminum "window" that allowed cathode rays to exit the tube into the open air, known as the Lenard tube, which proved the rays could exist independently outside of a vacuum. Other variations included tubes with internal screens coated with different phosphorescent materials like zinc sulfide or platinocyanide to study fluorescence.

Modern applications and legacy

While obsolete as a direct research tool, the principles and phenomena first isolated in these tubes underpin much of modern technology. Its direct descendant is the cathode-ray tube, which formed the display technology for television sets, radar screens, and early computer monitors for most of the 20th century. The entire field of electron microscopy relies on focused beams of electrons, a concept pioneered in Crookes's work. Furthermore, the discovery of X-rays it enabled revolutionized medical diagnosis, materials science, and security screening. The tube remains a classic demonstration apparatus in physics education, illustrating the properties of electron beams and the historical development of atomic theory.
