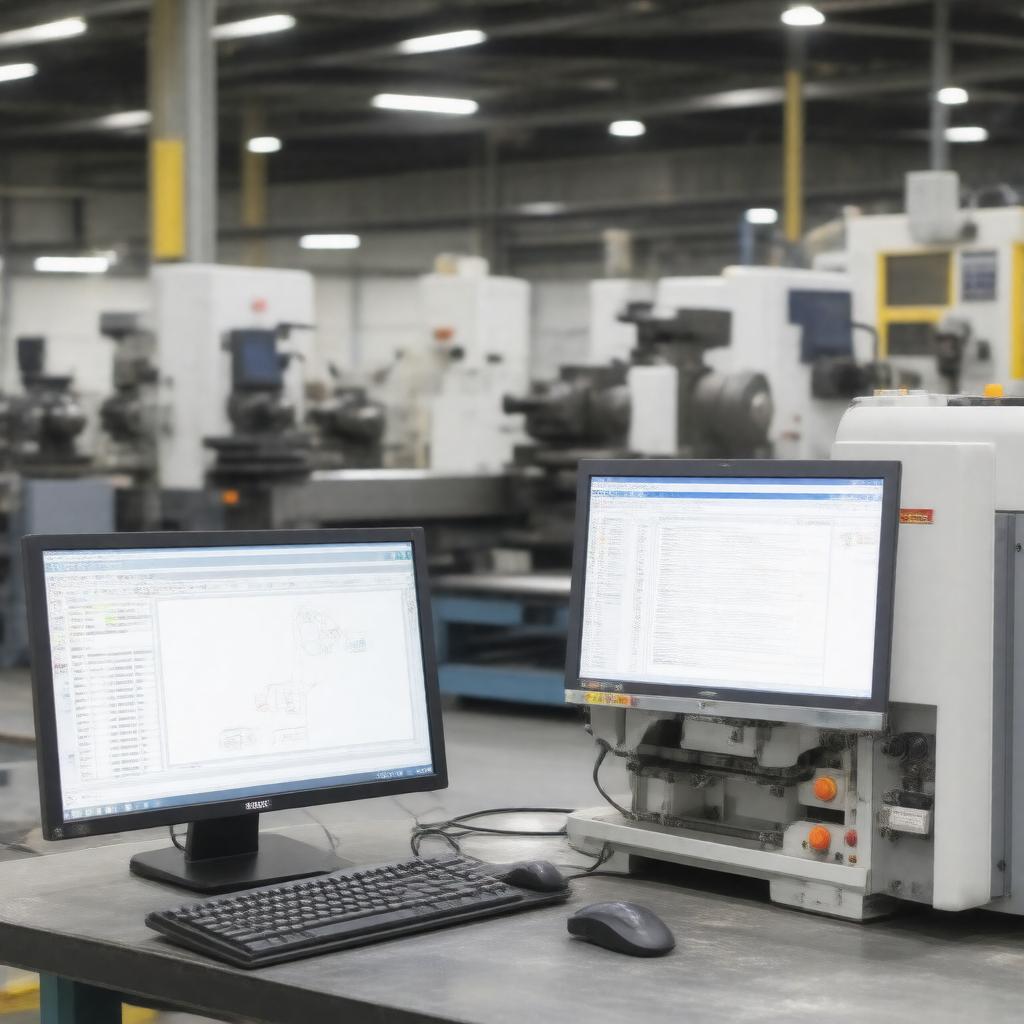

Caption	A modern machining center performing a milling operation.
Other names	CNC Machining
Classification	Subtractive manufacturing
Industry	Manufacturing, Aerospace, Automotive industry
Related	Computer-aided design, Computer-aided manufacturing, Additive manufacturing

CNC. Computer Numerical Control is a foundational technology in modern manufacturing, enabling the automated control of machine tools through programmed sequences of commands. This process revolutionized industries by allowing for high-precision, repeatable, and complex part production that manual operation could not achieve. The system interprets instructions, typically from a computer-aided design file, and directs the movement of tools on equipment such as lathes, mills, and routers.

Overview

The core principle involves the conversion of a digital design into physical parts through precise, automated movements. A controller unit reads and executes G-code, a standardized programming language that dictates tool paths, speeds, and feed rates. This technology is integral to subtractive manufacturing, where material is removed from a solid block, contrasting with processes like additive manufacturing used in 3D printing. Its adoption spans from small job shops to massive original equipment manufacturer facilities, driving efficiency in producing components for sectors like the automotive industry and medical device companies.

History

The development of numerical control has its roots in the post-World War II era, with early work funded by the United States Air Force to produce complex aircraft parts. Pioneers like John T. Parsons collaborated with the Massachusetts Institute of Technology to create the first numerically controlled milling machine in the 1950s. These early systems used punched tape and analog computers, which were later supplanted by minicomputers and microprocessors in the 1970s, giving rise to modern CNC. The integration of computer-aided design and computer-aided manufacturing software in the 1980s, championed by companies like Autodesk and Dassault Systèmes, further cemented its dominance in industrial production.

Components and operation

A typical system consists of several key hardware and software elements. The machine tool itself, such as a machining center or turning center, is equipped with servo motors and drive components that move along programmed axes. The controller, often a dedicated industrial computer from manufacturers like Fanuc or Siemens, interprets the program code. Critical feedback is provided by encoders and resolvers, ensuring positional accuracy. Operation involves securing the workpiece with fixtures like a vise or chuck, selecting appropriate cutting tools, and initiating the cycle, which is monitored by an operator often trained at institutions like the National Institute for Metalworking Skills.

Programming

Creating instructions for a machine is a specialized field, primarily utilizing G-code and its more advanced conversational variants. Programmers use computer-aided manufacturing software, such as Mastercam or SOLIDWORKS CAM, to generate toolpaths from 3D models. This process involves defining operations like pocketing, contouring, and drilling, and specifying parameters such as spindle speed and coolant use. Increasingly, systems support conversational programming directly at the machine interface, simplifying the process for common tasks. Post-processors then convert the software's generic output into machine-specific code readable by controllers from Haas Automation or Mazak.

Applications

The technology is ubiquitous in industries requiring high precision and complex geometries. In the aerospace sector, companies like Boeing and Airbus use multi-axis systems to machine critical components from materials like titanium and Inconel. The automotive industry relies on it for producing engine blocks, transmissions, and custom parts for vehicles from Ford Motor Company to Ferrari. Other key applications include creating molds for the plastics industry, surgical instruments and implants for Johnson & Johnson, and intricate components for the electronics sector, including the Silicon Valley semiconductor industry.

Types of CNC machines

Machines are categorized by their operation, number of axes, and specific application. Common types include the CNC mill, which uses rotary cutters, and the CNC lathe, which rotates the workpiece against a stationary tool. A machining center typically combines milling and drilling capabilities and may include an automatic tool changer. Routers are used for cutting softer materials like wood and plastics, notably in sign-making and cabinetry. Advanced configurations include 5-axis machining centers, which allow for complex contouring, and Swiss-style lathes, designed for high-precision, small-diameter parts. Specialized machines like EDM (Electrical Discharge Machining) units from Agie Charmilles are used for hard metals and intricate shapes.
