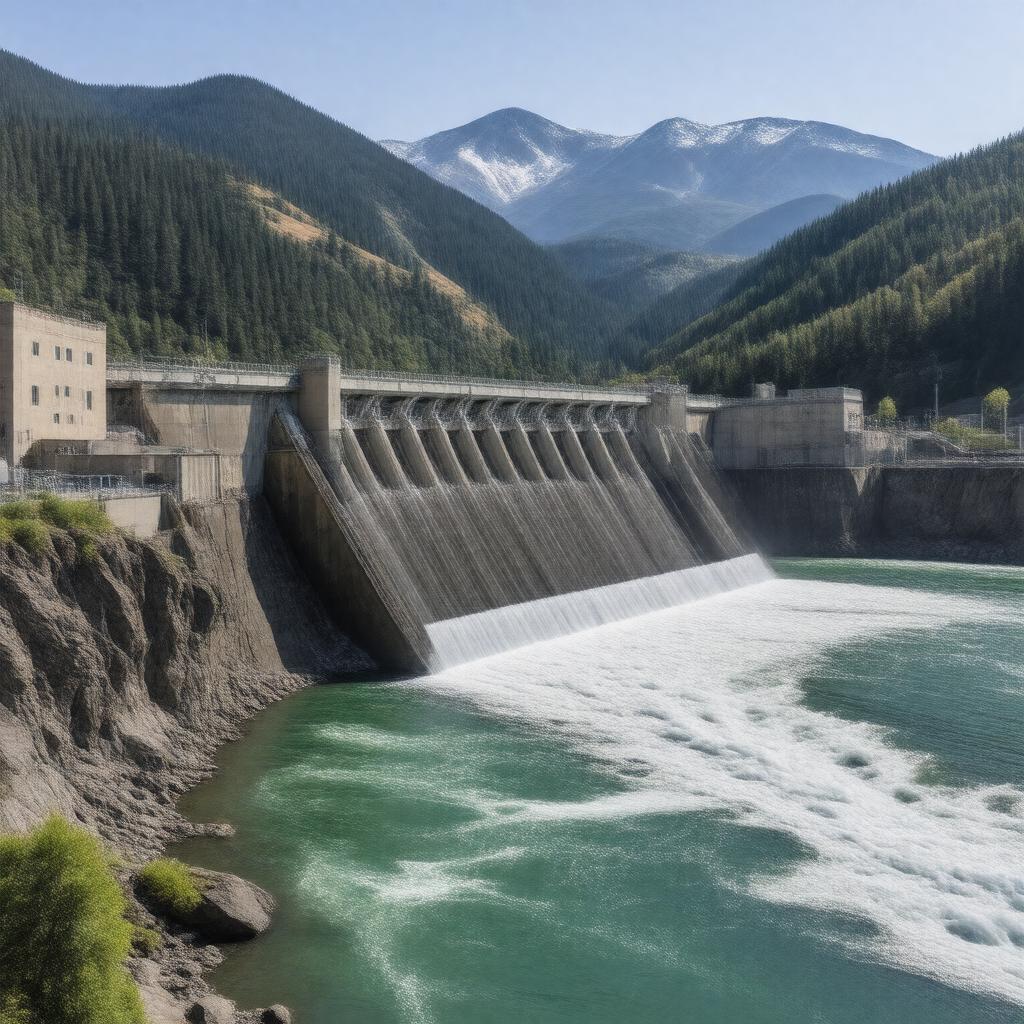

Bonneville Dam

Bonneville Dam is a major run-of-the-river hydroelectric dam on the Columbia River in the Columbia River Gorge, located on the border between the states of Oregon and Washington. Constructed and operated by the United States Army Corps of Engineers, it was the first federal hydroelectric project on the river and a cornerstone of the New Deal's public works initiatives. The dam creates Lake Bonneville and provides Flood control, Navigation, and substantial electrical power to the Pacific Northwest.

History

The site's potential was recognized by early explorers, including Lewis and Clark, who navigated the treacherous Cascades Rapids nearby in 1805. The push for development gained momentum in the early 20th century, championed by figures like Oswald West and Julius L. Meier, to improve river navigation and harness the Columbia River's power. Authorized by the Rivers and Harbors Act of 1925 and funded under President Franklin D. Roosevelt's New Deal through the Emergency Relief Appropriation Act of 1935, construction began in 1934 as a massive public works project. Its completion in 1938 symbolized the triumph of American engineering during the Great Depression and was a key component of the emerging Bonneville Power Administration system.

Construction and design

The original structure, built between 1934 and 1938, consisted of a spillway, a navigation lock, and the initial powerhouse. A major expansion, the Second Powerhouse, was constructed between 1974 and 1981 on the Washington shore to meet growing energy demands. The dam is a concrete gravity dam flanked by earthen embankments, stretching over 2,600 feet across the river. Its design includes a large spillway with numerous tainter gates to manage water flow and a crucial navigation lock that was later superseded by a larger lock completed in 1993 to accommodate modern barge traffic.

Operations and power generation

Operated by the United States Army Corps of Engineers, the dam's two powerhouses contain a total of twenty generator units with a combined installed capacity of 1,242 MW. The Bonneville Power Administration markets and transmits the electricity produced, which is a foundational part of the Northwest Power Pool. The facility operates as a run-of-the-river project, with limited storage in Lake Bonneville, requiring careful coordination with upstream dams like The Dalles Dam and John Day Dam for load following and grid stability across the Western Interconnection.

Environmental impact and fish passage

The dam significantly altered the ecosystem of the Columbia River, most notably creating a barrier to anadromous fish migration. In response, an extensive system of fish ladders was constructed, which are among the world's most viewed at the Bradford Island visitor center. The United States Army Corps of Engineers, along with NOAA Fisheries and the U.S. Fish and Wildlife Service, operates sophisticated fish counting stations and has implemented measures like spillway weirs and turbine intake screens to improve survival rates for species including Chinook salmon, steelhead, and Pacific lamprey.

Navigation and economic significance

The dam's navigation lock is an integral component of the Columbia-Snake Inland Waterway, a 465-mile shipping channel from the Pacific Ocean to Lewiston, Idaho. This system allows barges to transport millions of tons of agricultural products, notably wheat from the Palouse region, and other bulk commodities annually. By providing reliable, low-cost hydroelectricity, the dam has been a catalyst for industrial development in the Pacific Northwest, supporting industries like the aluminum smelting operations of the World War II era and continuing to supply power to millions of residents and businesses.
