Benz Patent-Motorwagen

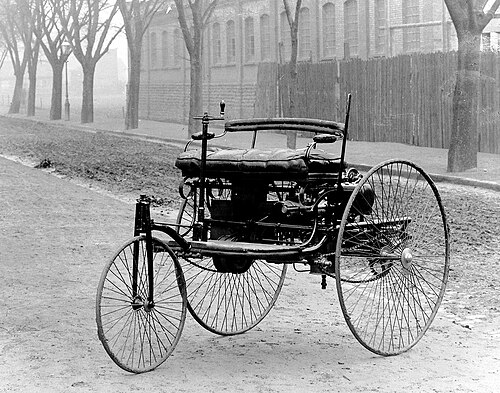

Benz Patent-Motorwagen
Public domain · source
Name	Benz Patent-Motorwagen
Manufacturer	Carl Benz
Production	1886–1893
Class	Horseless carriage
Layout	Rear-engine, rear-wheel-drive layout
Engine	954 cc single-cylinder four-stroke engine
Power	0.75 hp (0.55 kW)
Transmission	Belt drive with differential
Wheelbase	1,450 mm (57 in)
Weight	265 kg (584 lb)

Benz Patent-Motorwagen. The Benz Patent-Motorwagen is widely regarded as the world's first practical automobile powered by an internal combustion engine. Patented by German engineer Carl Benz on January 29, 1886, this three-wheeled vehicle marked a foundational moment in automotive history. Its creation emerged from Benz & Cie., the precursor to Mercedes-Benz, and represented a radical departure from horse-drawn carriage transport, integrating a purpose-built chassis with a newly designed engine.

History and development

The development of the Patent-Motorwagen was the culmination of Carl Benz's independent work during the 1880s, conducted at his workshop in Mannheim. Unlike contemporaries such as Gottlieb Daimler and Wilhelm Maybach, who were adapting engines to existing carriages, Benz envisioned a complete, integrated vehicle. Key financial and moral support came from his wife, Bertha Benz, whose famous long-distance drive in 1888 would later prove the vehicle's practicality. The design was granted Imperial Patent No. 37435, titled "Fahrzeug mit Gasmotorenbetrieb" (vehicle powered by a gas engine), securing its place in history. The vehicle's public debut is often cited as a quiet test drive on the Ringstraße in Mannheim in the summer of 1885, preceding the patent application.

Design and specifications

The vehicle's design was a novel integration of a lightweight tubular steel frame, three wire-spoked wheels, and a single-cylinder four-stroke engine. The engine, with a displacement of 954 cc, was horizontally mounted at the rear, producing approximately 0.75 horsepower at 400 rpm. It employed an advanced Benz-designed slide valve for gas intake and a surface carburetor for fuel vaporization. The chassis was a truss structure with elliptical spring suspension on the front wheel. Power was transmitted via a single leather belt drive to a differential gear on the rear axle, with a system of pulleys providing a single forward gear; coasting downhill engaged a separate belt for limited braking.

Operation and performance

Starting the engine required manually turning the large flywheel, while steering was accomplished via a tiller that directly turned the single front wheel. The vehicle used ligroin, a light petroleum solvent, as fuel, stored in a carburetor tank holding approximately 1.5 liters. With a top speed of about 16 km/h (10 mph), its operational range was limited. The lack of a dedicated braking system, beyond the transmission brake, and the vehicle's high center of gravity made it challenging to handle. Bertha Benz's 106-kilometer journey from Mannheim to Pforzheim in 1888 demonstrated its capabilities and led to several improvisations, including the use of a garter as insulation and visits to pharmacies to purchase ligroin.

Significance and legacy

The Patent-Motorwagen is universally recognized as the birth certificate of the automobile, establishing the fundamental template for subsequent motor vehicle development. It directly led to the establishment of the Mercedes-Benz brand and inspired a global industry. The vehicle was showcased at the 1889 World's Fair in Paris, influencing engineers like Émile Levassor and René Panhard. Its success prompted Carl Benz to develop improved models like the Benz Velo, which entered series production. The pioneering drive by Bertha Benz is commemorated by the Bertha Benz Memorial Route, and the date of the patent is celebrated in Germany as a milestone of engineering.

Surviving examples and replicas

The original 1886 Patent-Motorwagen is preserved and displayed at the Deutsches Museum in Munich. Several other original examples and contemporary models from the early production run are held in major institutions, including the Mercedes-Benz Museum in Stuttgart and the Science Museum in London. Numerous accurate replicas have been built for museums and private collections worldwide, such as those at the Henry Ford Museum in Dearborn and the Museum of American History in Washington, D.C.. These replicas are frequently operated at historical events to demonstrate the vehicle's original sound and operation.
