Alvin (DSV-2)

Alvin (DSV-2)
The original uploader was Jholman at English Wikipedia. Later versions were uplo · Public domain · source
Name	Alvin

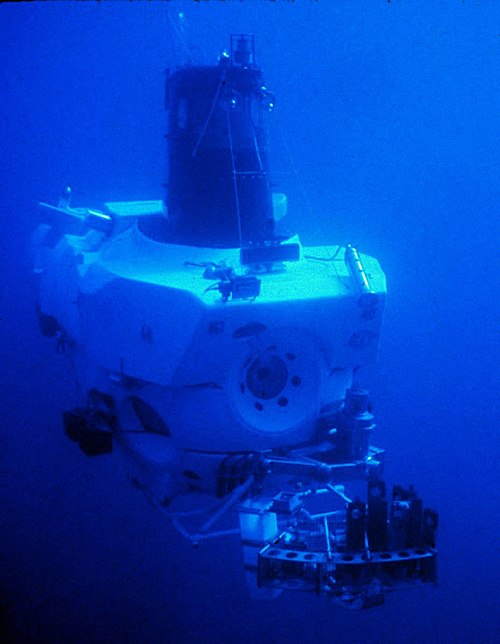

Caption	Alvin in 1978
Owner	United States Navy
Operator	Woods Hole Oceanographic Institution
Builder	General Mills
Commissioned	1964
Status	In active service
Class	Deep Submergence Vehicle
Displacement	17 tons
Length	7.1 m (23 ft)
Beam	2.6 m (8.5 ft)
Depth	6,500 m (21,300 ft)
Speed	2 knots (max)
Crew	1 pilot, 2 scientists

Alvin (DSV-2) is a crewed deep-ocean research submersible owned by the United States Navy and operated by the Woods Hole Oceanographic Institution (WHOI). Since its commissioning in 1964, it has completed over 5,000 dives, making it one of the world's most prolific and important deep-sea exploration vehicles. Its historic missions have fundamentally transformed our understanding of marine geology, hydrothermal vent ecosystems, and deep-ocean archaeology.

History and development

The submersible was conceived in the early 1960s, with funding from the Office of Naval Research, to provide the U.S. scientific community with unprecedented access to the deep sea. It was built by the General Mills electronics group, an unusual contractor better known for food products, and was named for its prime inspiration, WHOI engineer and geophysicist Allyn Vine. Following construction and testing, including initial dives in Bermuda, Alvin was commissioned in 1964 and began its operational life based at WHOI in Massachusetts. Its early years were marked by a series of engineering tests and shallow dives that proved its pressure hull design and maneuverability.

Design and specifications

The original design featured a spherical personnel hull, forged from HY-100 steel, capable of withstanding immense pressure. The submersible is equipped with robotic manipulator arms for sample collection, external mounts for scientific equipment, and multiple viewports. For propulsion, it uses battery-powered electric thrusters. A major redesign in the 1970s replaced the original hull with a stronger titanium alloy sphere, significantly increasing its depth rating. The modern Alvin can carry a pilot and two observers to depths of 6,500 meters, supported by a sophisticated array of sensors, high-definition video systems, and LED lighting.

Notable missions and discoveries

Alvin has been central to numerous landmark discoveries. In 1966, it located a lost hydrogen bomb in the Mediterranean Sea off Palomares, Spain. Its most revolutionary work began in 1977 with the exploration of hydrothermal vents near the Galápagos Rift, where scientists discovered entirely novel ecosystems based on chemosynthesis, challenging the paradigm that all life depends on sunlight. In 1986, it conducted the first crewed survey of the wreck of RMS ''Titanic''. Other significant dives have studied mid-ocean ridge systems like the East Pacific Rise and Juan de Fuca Ridge, and investigated cold seep communities in the Gulf of Mexico.

Operational service and upgrades

Operational service is managed by WHOI, with support from the National Science Foundation and the United States Navy. The submersible is launched and recovered from its dedicated support vessel, RV ''Atlantis''. It has undergone several major overhauls to extend its capabilities, most notably the Alvin Upgrade Project completed in 2013, which provided the new 6,500-meter depth-rated titanium sphere, improved ergonomics, and enhanced imaging and sampling systems. Regular maintenance and incremental technological upgrades ensure it remains at the forefront of oceanographic research.

Legacy and impact

The legacy of Alvin is profound, having pioneered the field of deep-sea exploration and enabled in-situ human observation of the ocean's greatest depths. Its discoveries, such as hydrothermal vent life, have reshaped the fields of biology, geology, and astrobiology. The submersible has also trained generations of marine scientists and engineers. It serves as the prototype and inspiration for subsequent deep-submergence vehicles worldwide and remains an indispensable national asset for oceanographic discovery.
