AN/SPY-6

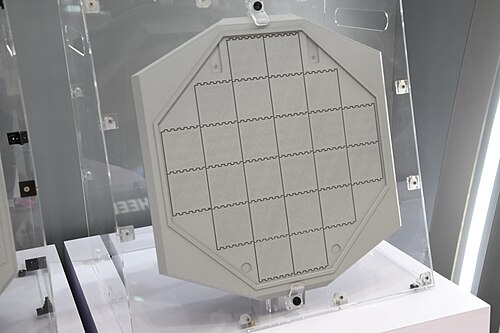

AN/SPY-6
Hunini · CC BY-SA 4.0 · source
NameAN/SPY-6
TypeActive Electronically Scanned Array (AESA) radar
CountryUnited States
ManufacturerRaytheon Technologies
Introduced2023
Number builtPlanned for over 50 systems
PlatformArleigh Burke-class (Flight III), Ford-class, future Constellation-class

AN/SPY-6. It is the U.S. Navy's next-generation family of air and missile defense radars, designed to provide significantly greater sensitivity, range, and discrimination than its predecessors. Central to the Integrated Air and Missile Defense (IAMD) capability, it is a critical component for the Aegis Combat System on new-construction surface combatants. The radar's modular, scalable architecture allows it to be configured for different ship classes and mission requirements, forming the backbone of future naval air defense.

Overview

The system represents a generational leap in naval radar technology, transitioning from the legacy AN/SPY-1 passive electronically scanned array to an active electronically scanned array design. This shift, managed by the Program Executive Office Integrated Warfare Systems (PEO IWS), enables simultaneous multi-mission performance, including ballistic missile defense, anti-air warfare, and surface warfare. Its development was a key enabler for the Arleigh Burke-class Flight III destroyers, allowing them to host the powerful AN/SPY-6(V)1 while maintaining the ship's stability. The radar family is integral to the Navy's Distributed Lethality and Naval Integrated Fire Control-Counter Air (NIFC-CA) concepts, enhancing fleet-wide sensor connectivity.

Development and variants

Development began under the Air and Missile Defense Radar (AMDR) program, a competition ultimately won by Raytheon Technologies in 2013. The program was structured to deliver scalable radar suites built from common Radar Modular Assemblies (RMAs), which are 2-foot-by-2-foot-by-2-foot cubes containing transmit/receive elements. Primary variants include the large, 37-RMA AN/SPY-6(V)1 for Flight III destroyers, the 9-RMA AN/SPY-6(V)2 for the Ford-class aircraft carrier, and the 3-RMA AN/SPY-6(V)3 for the future Constellation-class frigate. Other adaptations include the land-based AN/SPY-6(V)4 for the Army Navy/Transportable Radar Surveillance (AN/TPY-6) and the solid-state AN/SPQ-9B X-band radar replacement. Testing occurred at sites like the Pacific Missile Range Facility and the Combat System Ship Qualification Trials.

Technical description

At its core, the system utilizes gallium nitride (GaN) semiconductor technology within its RMAs, providing greater power density and efficiency than the older gallium arsenide used in the AN/SPY-1. Each RMA functions as an independent radar, and the arrays are composed of thousands of these elements, generating digitally formed beams. This architecture provides over 30 times the sensitivity of the AN/SPY-1D(V), dramatically improving detection range and tracking accuracy against advanced threats like hypersonic weapons and low-observable targets. The system integrates with the Aegis Combat System Baseline 10 and supports simultaneous operations in S-band for volume search and tracking and X-band for horizon search and precision tracking, facilitated by a dedicated Radar Suite Controller.

Deployment and operational history

The first operational deployment is aboard the USS Jack H. Lucas (DDG-125), the inaugural Flight III destroyer, which commenced sea trials in 2023. Follow-on ships like the USS Ted Stevens (DDG-128) and USS Jeremiah Denton (DDG-129) will also be equipped. The radar is also slated for installation on future Ford-class carriers, beginning with the USS John F. Kennedy (CVN-79), and the Constellation-class frigate. Its introduction is a cornerstone of the United States Indo-Pacific Command strategy to counter advancing capabilities from nations like the People's Liberation Army Rocket Force and bolster allied defense networks with partners such as the Japan Maritime Self-Defense Force and the Royal Australian Navy.

Future efforts focus on further integration and evolution, including potential applications for the DDG(X) next-generation destroyer program and continued software upgrades under the Aegis Combat System modernization roadmap. The technology is also being leveraged in other programs, such as the Lower Tier Air and Missile Defense Sensor (LTAMDS) for the U.S. Army and the Air Force's Three-Dimensional Expeditionary Long-Range Radar (3DELRR). International sales, potentially through the Foreign Military Sales program to allies like the Republic of Korea Navy, are under consideration. Its open architecture ensures it will remain a pivotal sensor within the Joint All-Domain Command and Control (JADC2) framework for decades.
