10 Gigabit Ethernet

10 Gigabit Ethernet
Geek2003 · CC BY-SA 3.0 · source
Name	10 Gigabit Ethernet
Caption	A typical SFP+ transceiver module used for 10 Gigabit Ethernet.
Developed by	IEEE 802.3 working group
Inception	2002 (standard ratified)
Industry	Telecommunications, Data center networking

10 Gigabit Ethernet. It is a group of networking technologies for Ethernet at a nominal data rate of 10 gigabits per second, ten times faster than Gigabit Ethernet. Ratified as standard IEEE 802.3ae in 2002, it marked a significant evolution in local and metropolitan area network capabilities. The technology was developed primarily to meet the escalating bandwidth demands of network backbones, internet service provider interconnects, and high-performance computing environments.

Technical specifications

Operating at the data link layer, it maintains Ethernet frame format and IEEE 802.3 minimum and maximum frame sizes, ensuring backward compatibility with previous Ethernet standards. A key technical departure from earlier versions is its specification as a full-duplex-only technology, eliminating the need for the CSMA/CD access method. The standard introduced the 64b/66b encoding scheme for efficient data transmission and defined two distinct physical layer architectures: the LAN PHY for traditional network environments and the WAN PHY for compatibility with SONET/SDH infrastructures like OC-192.

Physical layer variants

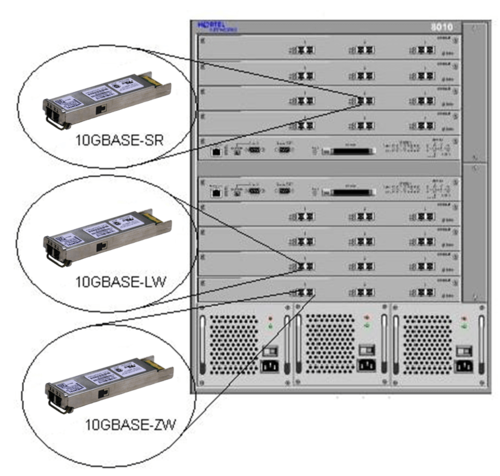

The standard defines several physical media dependent interfaces to support different deployment distances and cable types. For fiber optic cabling, variants include 10GBASE-SR for short-range multi-mode fiber, 10GBASE-LR and 10GBASE-ER for long and extended-range single-mode fiber, respectively. The 10GBASE-LX4 standard uses WDM to support older multi-mode fiber. For copper infrastructure, 10GBASE-CX4 was an early specification for InfiniBand-style twinaxial cable over short distances, while the later 10GBASE-T standard enabled the use of conventional Category 6 or 6a unshielded twisted pair cabling, significantly broadening its adoption in structured cabling plants.

Applications and adoption

Initial deployment was concentrated in the high-performance sectors of internet backbone links, large data center inter-switch connections, and storage area networks. It became the foundational backbone technology for Internet2 and other national research and education networks. With the advent of more affordable 10GBASE-T and SFP+ Direct Attach Copper cabling, adoption proliferated into enterprise network cores, aggregation layers, and high-speed server connectivity, particularly to support virtualization platforms like VMware and high-throughput applications. Its use is also critical in internet exchange point infrastructures and for uplinks from ISP access equipment.

Comparison with other Ethernet standards

Compared to its predecessor Gigabit Ethernet, it offers a tenfold increase in throughput but initially required more expensive optical components and had limited copper support. Against subsequent standards like 25 Gigabit Ethernet and 40 Gigabit Ethernet, it is often seen as a more cost-effective solution for single-server connectivity, whereas the higher-rate standards target aggregated uplinks and specific data center spine layers. Unlike Fibre Channel over traditional storage networks, protocols like Fibre Channel over Ethernet and iSCSI can leverage it for converged network fabric. Its WAN PHY provides a more efficient and cost-effective alternative to SONET for certain metropolitan network applications.

History and development

The development was driven by the IEEE 802.3 Ethernet Working Group, with the 10 Gigabit Ethernet Alliance formed in 2000 to promote industry standardization. Key milestones included the ratification of the IEEE 802.3ae standard in June 2002, which defined the fiber-based variants. Subsequent amendments like IEEE 802.3ak (2004) added 10GBASE-CX4, IEEE 802.3an (2006) standardized 10GBASE-T, and IEEE 802.3aq (2006) introduced 10GBASE-LRM. Early proponents and implementers included major equipment vendors such as Cisco Systems, Juniper Networks, and Force10 Networks, with early adopters being entities like the Stanford Linear Accelerator Center and major Tier 1 telecommunications carriers.
